HVAC CONTROL SYSTEM LOCATION INDEX [MANUAL AIR CONDITIONER (US)]
HVAC CONTROL SYSTEM LOCATION INDEX [MANUAL AIR CONDITIONER (US)]
SM2566290
id0740a28036y3

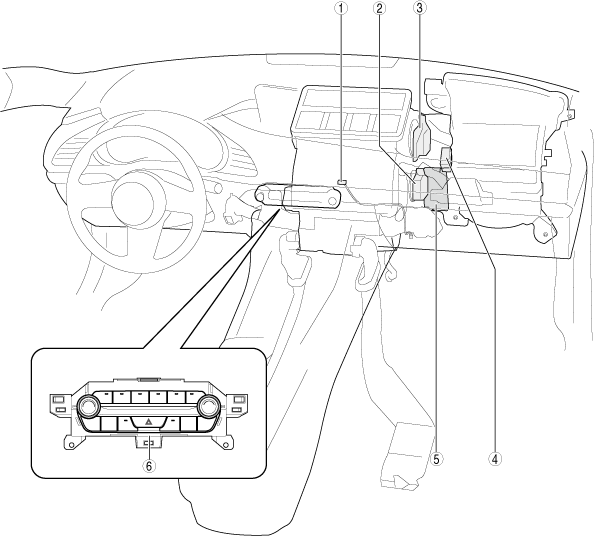

Structural View (Interior)
am3zzw00021416
|
|
1
|
Evaporator temperature sensor
|
|
2
|
Air mix actuator
|
|
3
|
Airflow mode actuator
|
|
4
|
Air intake actuator
|
|
5
|
Dash-electrical supply unit
|
|
6
|
Climate control unit
|

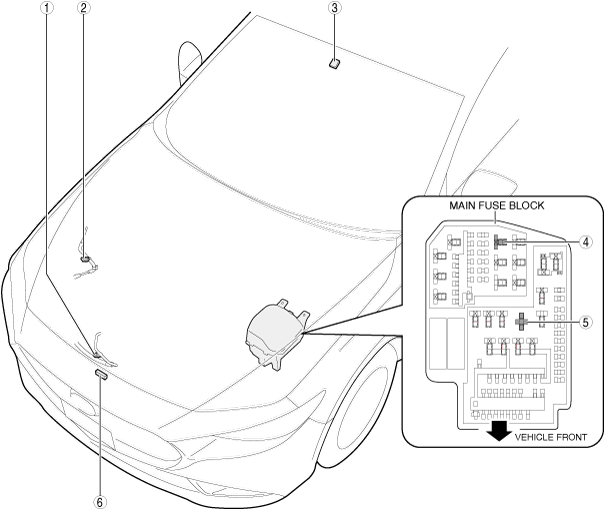

Structural View (Exterior)
am3zzw00021417
|
|
1
|
Refrigerant pressure sensor No.2
|
|
2
|
Refrigerant pressure sensor No.1
|
|
3
|
Solar radiation sensor (with solar radiation sensor)/humidity sensor
|
|
4
|
A/C relay
(See RELAY LOCATION [(US)].)
(See RELAY INSPECTION.)
|
|
5
|
Blower relay
(See RELAY LOCATION [(US)].)
(See RELAY INSPECTION.)
|
|
6
|
Ambient temperature sensor
|
