AMBIENT TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER]

AMBIENT TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER]

SM2566289

id0740a2803300

1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the ambient temperature sensor. (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

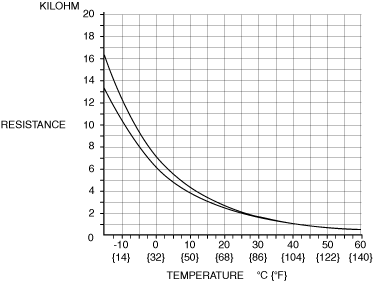

3.Measure the temperature around the ambient temperature sensor and measure the resistance between the ambient temperature sensor terminals A and B.
am3uuw00010222
am3zzw00034232
• If the characteristics of the ambient temperature sensor are not as shown in the graph, replace the ambient temperature sensor. (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
