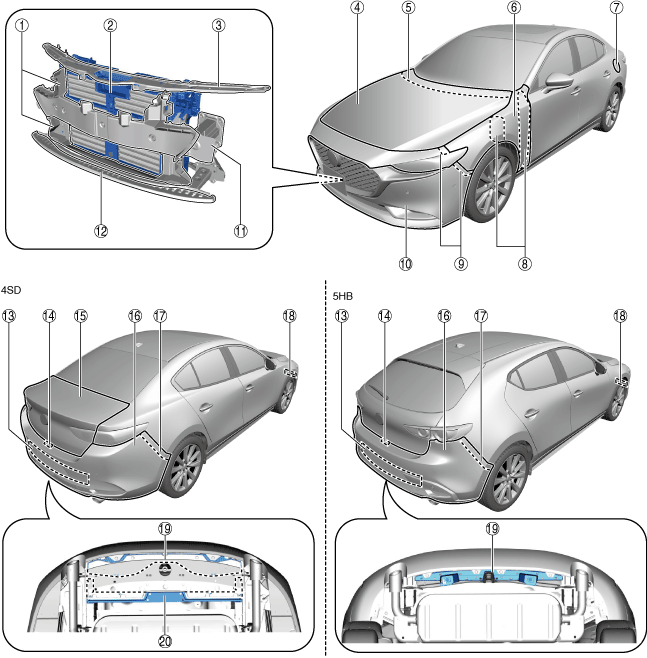

BODY PANELS LOCATION INDEX

BODY PANELS LOCATION INDEX

SM2336332

id091000802600
am3zzw00023241
1
Intake air guide
(See INTAKE AIR GUIDE REMOVAL/INSTALLATION.)
2
Shroud panel
(See SHROUD PANEL REMOVAL/INSTALLATION [(US)].)
3
Shroud upper member
(See SHROUD UPPER MEMBER REMOVAL/INSTALLATION [(US)].)
4
Hood
(See HOOD REMOVAL/INSTALLATION.)
(See HOOD DISASSEMBLY/ASSEMBLY [(US)].)
(See HOOD ADJUSTMENT.)
5
Cowl panel
(See COWL PANEL REMOVAL/INSTALLATION [(US)].)
6
Front fender panel
(See FRONT FENDER PANEL REMOVAL/INSTALLATION.)
7
Fuel-filler lid
(See FUEL-FILLER LID REMOVAL/INSTALLATION.)
8
Front fender insulator
(See FRONT FENDER INSULATOR No.1 REMOVAL/INSTALLATION.)
(See FRONT FENDER INSULATOR No.2 REMOVAL/INSTALLATION.)
9
Front bumper slider
(See BUMPER SLIDER REMOVAL/INSTALLATION.)
10
Front bumper
(See FRONT BUMPER REMOVAL/INSTALLATION [(US)].)
(See FRONT BUMPER DISASSEMBLY/ASSEMBLY [(US)].)
11
Front bumper reinforcement
(See FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION.)
12
Bumper stiffener lower
(See BUMPER STIFFENER LOWER REMOVAL/INSTALLATION.)
13
Rear bumper reinforcement
(See REAR BUMPER REINFORCEMENT REMOVAL/INSTALLATION.)
14
Rear bumper bracket
(See REAR BUMPER BRACKET REMOVAL/INSTALLATION.)
15
Trunk lid (4SD)
(See TRUNK LID REMOVAL/INSTALLATION.)
(See TRUNK LID ADJUSTMENT.)
(See BALANCE SPRING REMOVAL/INSTALLATION.)
16
Rear bumper
(See REAR BUMPER REMOVAL/INSTALLATION.)
(See REAR BUMPER DISASSEMBLY/ASSEMBLY [(US)].)
17
Rear bumper slider
(See BUMPER SLIDER REMOVAL/INSTALLATION.)
18
Front fender stay
(See FRONT FENDER STAY REMOVAL/INSTALLATION.)
19
Rear bumper stay
(See REAR BUMPER STAY REMOVAL/INSTALLATION.)
20
Set plate (4SD)
(See SET PLATE REMOVAL/INSTALLATION.)
