FUEL-FILLER LID REMOVAL/INSTALLATION
FUEL-FILLER LID REMOVAL/INSTALLATION
SM2336318
id091000800100

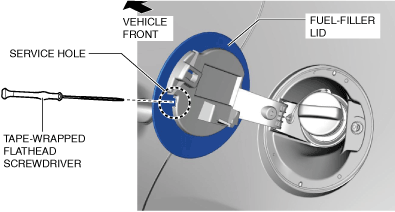

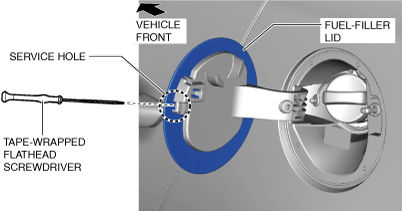

1.Insert a tape-wrapped flathead screwdriver into the service hole.
4SD
am3zzw00029214
|
5HB
am3zzw00029215
|

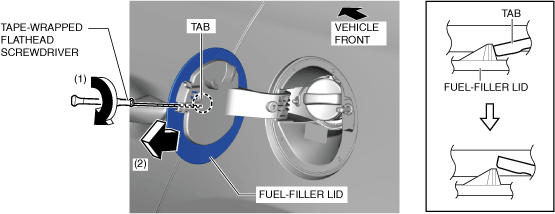

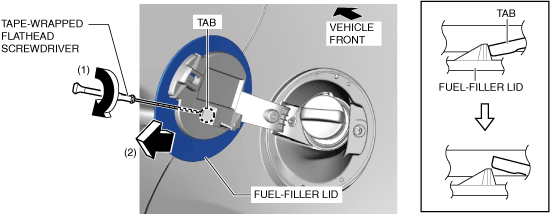

2.Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure and detach the tab.
4SD
am3zzw00023179
|
5HB
am3zzw00029216
|
3.Move the fuel-filler lid in the direction of arrow (2) shown in the figure with the tab left detached, and remove the fuel-filler lid.
4.Install in the reverse order of removal.
