REAR BUMPER STAY REMOVAL/INSTALLATION
REAR BUMPER STAY REMOVAL/INSTALLATION
SM2336343
id091000991100
1.Remove the rear under cover. (4SD) (See REAR UNDER COVER REMOVAL/INSTALLATION.)

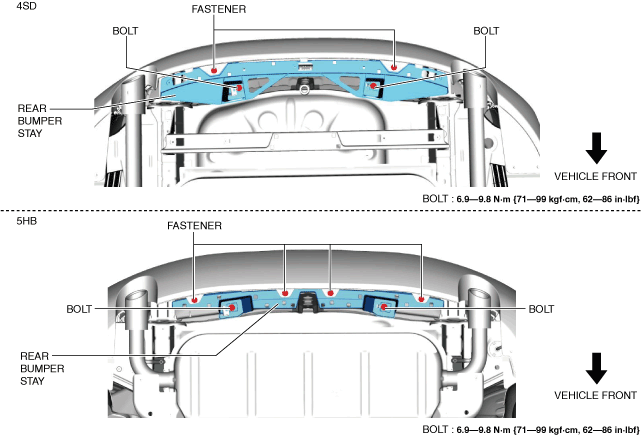

2.Remove the fasteners.
am3zzw00023277
|
3.Remove the bolts.

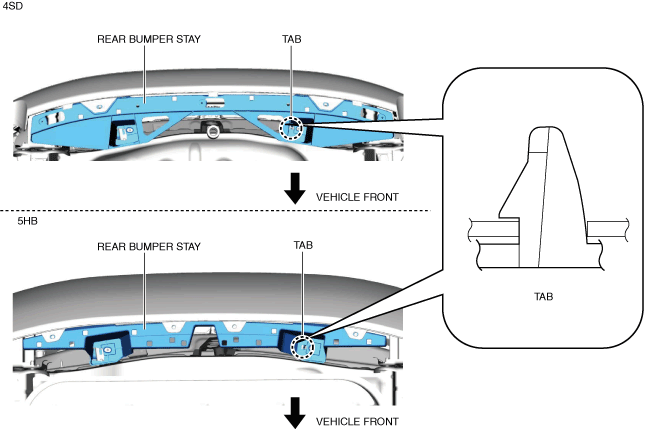

4.Detach the tab shown in the figure.
am3zzw00023278
|
5.Remove the rear bumper stay.
6.Install in the reverse order of removal.
