HOOD ADJUSTMENT
HOOD ADJUSTMENT
SM2336327
id091000801400
Gap Adjustment

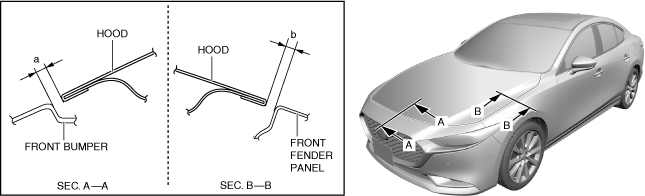

1.Verify that the gap between the hood and the body is within the specification.
am3zzw00023215
|
-
Standard clearance
-
a: 2.7—5.7 mm {0.11—0.22 in}b: 2.5—4.0 mm {0.10—0.15 in}
-
• If the measured value exceeds the standard clearance, adjust the hood using the following procedure.

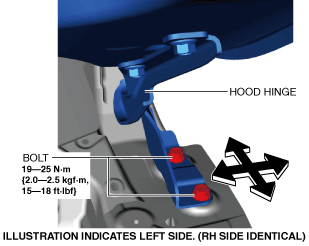

2.Loosen the bolts and adjust the hood.
am3zzw00023216
|
3.Tighten the bolts. (See HOOD REMOVAL/INSTALLATION.)
Height Difference Adjustment

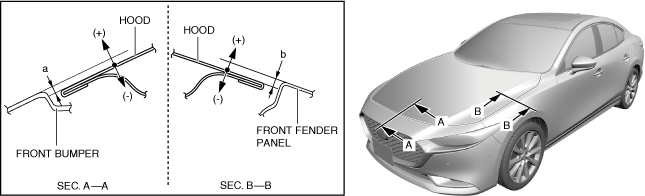

1.Verify that the height difference between the hood and the body is within the specification.
am3zzw00023217
|
-
Standard clearance
-
a: –2.0—2.0 mm {–0.078—0.078 in}b: –1.0—1.0 mm {–0.039—0.039 in}
-
• If the measured value exceeds the standard clearance, adjust the hood using the following procedure.

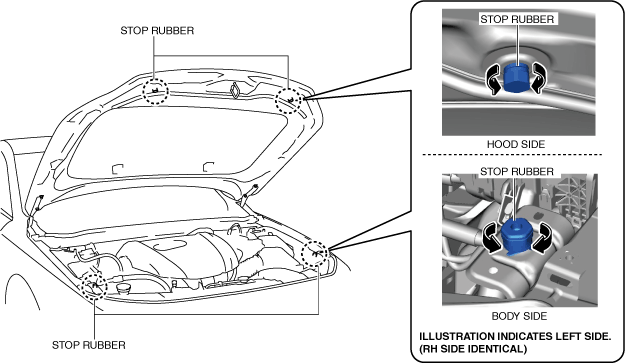

2.Turn the stop rubber to adjust the height of the hood.
am3zzw00023218
|
