DTC P0451:00 [PCM (SKYACTIV-G)]
DTC P0451:00 [PCM (SKYACTIV-G)]
SM2334436
id0102t4300700
-
Note
-
• To determine the malfunctioning part, proceed with the diagnostics from “Function Inspection Using M-MDS”.
Details On DTCs
|
Description |
Fuel tank pressure sensor: sensor characteristic malfunction |
|
|---|---|---|
|
Detection condition
|
Determination conditions
|
• The fuel tank pressure sensor input voltage is the threshold or more.
|
|
Preconditions
|
• Battery voltage: above 8 V *1
• Period ignition is switched off before engine starts: 120 min or more
• Purge solenoid valve not operating
• The following DTCs are not detected:
*1: Standard can be verified by displaying PIDs using M-MDS
|
|
|
Malfunction determination period
|
• During one drive cycle
|
|
|
Drive cycle
|
• 2
|
|
|
Self test type
|
• CMDTC self test
|
|
|
Sensor used
|
• Fuel tank pressure sensor
|
|
|
Fail-safe function
|
• Not applicable
|
|
|
Vehicle status when DTCs are output
|
• Not applicable
|
|
|
Possible cause
|
• Fuel tank pressure sensor connector or terminals malfunction
• PCM connector or terminals malfunction
• Fuel tank pressure sensor malfunction
• Charcoal canister main malfunction
• Charcoal canister sub malfunction
• CV solenoid valve malfunction
• Evaporative hose malfunction
• PCM malfunction
|
|
System Wiring Diagram
• Not applicable
Function Explanation (DTC Detection Outline)
• The PCM detects the pressure of the fuel tank based on the fuel tank pressure sensor signal. The PCM determines a fuel tank pressure sensor signal error based on the condition in which the fuel tank pressure sensor voltage continues to be the specified value or more, and stores a DTC.

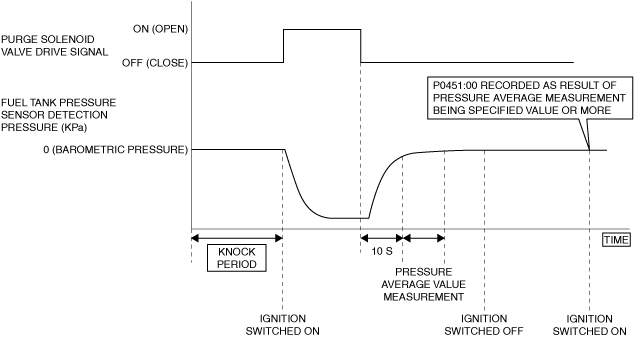

am3zzw00033460
|
Repeatability Verification Procedure
1. Switch the ignition off.
2. Leave the vehicle for 2 hours or more.
3. Start the engine and leave it idling for 1 min.
PID Item/Simulation Item Used In Diagnosis
PID/DATA monitor item table
|
PIDs |
Reference |
|---|---|
|
AMB_AIR_TEMP
|
|
|
FTP
|
Function Inspection Using M-MDS
|
Step |
Inspection |
Results |
Action |
|---|---|---|---|
|
1
|
PURPOSE: VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY
• Verify related Service Bulletins, on-line repair information, or Service Information availability.
• Is any related Information available?
|
Yes
|
Perform repair or diagnosis according to the available information.
• If the vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
||
|
2
|
PURPOSE: RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION
• Record the freeze frame data/snapshot data.
|
—
|
Go to the next step.
|
|
3
|
PURPOSE: VERIFY IF FUEL TANK PRESSURE SENSOR HAS MALFUNCTION
• Perform the DTC inspection for the PCM. (See DTC INSPECTION.)
• Are any of the following DTCs displayed?
|
Yes
|
The possibility of a fuel tank pressure sensor malfunction is high.
• Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC P0452:00 [PCM (SKYACTIV-G)].) (See DTC P0453:00 [PCM (SKYACTIV-G)].) (See DTC P0454:00 [PCM (SKYACTIV-G)].)
|
|
No
|
Go to the next step.
|
||
|
4
|
PURPOSE: INSPECTION OF CLOGGING BETWEEN FUEL TANK PRESSURE SENSOR AND FUEL TANK
• Perform the DTC inspection for the PCM. (See DTC INSPECTION.)
• Are any of the following DTCs displayed?
|
Yes
|
The possibility of clogging between fuel tank pressure sensor and fuel tank is high.
• Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC P144A:00 [PCM (SKYACTIV-G)].)
|
|
No
|
Go to the next step.
|
||
|
5
|
PURPOSE: VERIFY IF CV SOLENOID VALVE HAS MALFUNCTION
• Perform the DTC inspection for the PCM. (See DTC INSPECTION.)
• Are any of the following DTCs displayed?
|
Yes
|
The possibility of a CV solenoid valve malfunction is high.
• Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC P0446:00 [PCM (SKYACTIV-G)].)
|
|
No
|
Go to the next step.
|
||
|
6
|
PURPOSE: VERIFY IF FUEL TANK PRESSURE IS STUCK TO EITHER LOW OR HIGH PRESSURE SIDE
• Start the engine and idle it.
• Access the FTP PID using the M-MDS. (See PID/DATA MONITOR INSPECTION.)
• Is the FTP PID value 0.424 kPa {0.00432 kgf/cm2, 0.0615 psi} or more?
|
Yes
|
The possibility that the fuel tank pressure is stuck to the high pressure side is high.
• Go to the next step.
|
|
No
|
The possibility that the fuel tank pressure is stuck to the low pressure side is high.
• Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 4.
|
||
|
7
|
PURPOSE: VERIFY IF MALFUNCTION CAUSE IS FREEZING OF FUEL TANK PRESSURE SENSOR BY VERIFYING AMBIENT TEMPERATURE
• Start the engine and idle it.
• Access the AMB_AIR_TEMP PID using the M-MDS. (See PID/DATA MONITOR INSPECTION.)
• Is the AMB_AIR_TEMP PID value 0 °C {32 °F} or less?
|
Yes
|
The possibility of a malfunction caused by freezing of the fuel tank pressure sensor is high.
• Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 1.
|
|
No
|
Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 2.
|
Troubleshooting Diagnostic Procedure
Intention of troubleshooting procedure
• Step 1
-
― Visually verify that there are no traces of freezing on the fuel tank pressure sensor.
• Step 2—3
-
― Inspect the charcoal canister for clogging.
• Step 4
-
― Perform a unit inspection of the CV solenoid valve.
• Step 5
-
― Verify that there is no breakage or clogging in the evaporative hose.
• Step 6
-
― Perform a unit inspection of the fuel tank pressure sensor.
• Repair completion verification
-
― Verify that the primary malfunction is resolved and there are no other malfunctions.
|
Step |
Inspection |
Results |
Action |
|---|---|---|---|
|
1
|
PURPOSE: VISUALLY VERIFY THAT THERE ARE NO TRACES OF FREEZING ON THE FUEL TANK PRESSURE SENSOR
• Visually inspect for fuel tank pressure sensor.
• Can traces of freezing be verified on the fuel tank pressure sensor?
|
Yes
|
Evaporative gas freezes when the ambient temperature is low, and it is highly possible that the fuel tank pressure sensor measurement is affected because the vehicle was not refueled appropriately.
• Replace the fuel and perform the repair completion verification.
|
|
No
|
Go to Step 6.
|
||
|
2
|
PURPOSE: INSPECTION OF CHARCOAL CANISTER MAIN FOR CLOGGING
• Inspect for clogging in the charcoal canister main. (See CHARCOAL CANISTER INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].) (See CHARCOAL CANISTER INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))].)
• Is there any malfunction?
|
Yes
|
Replace the charcoal canister main and perform the repair completion verification.
|
|
No
|
Go to the next step.
|
||
|
3
|
PURPOSE: INSPECTION OF CHARCOAL CANISTER SUB FOR CLOGGING
• Inspect for clogging in the charcoal canister sub. (See CHARCOAL CANISTER INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].) (See CHARCOAL CANISTER INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))].)
• Is there any malfunction?
|
Yes
|
Replace the charcoal canister sub and perform the repair completion verification.
|
|
No
|
Go to the next step.
|
||
|
4
|
PURPOSE: INSPECT CV SOLENOID VALVE FOR MALFUNCTION
• Inspect the applicable part. (See CANISTER VENT (CV) SOLENOID VALVE INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].) (See CANISTER VENT (CV) SOLENOID VALVE INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))].)
• Is the part normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
|
5
|
PURPOSE: INSPECTION OF EVAPORATIVE HOSE FOR BREAKAGE OR CLOGGING
• Inspect for breakage or clogging in the evaporative hose (hose between CV solenoid valve and atmosphere).
• Is there any malfunction?
|
Yes
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
|
No
|
Go to the next step.
|
||
|
6
|
PURPOSE: INSPECT FUEL TANK PRESSURE SENSOR FOR MALFUNCTION
• Inspect the applicable part. (See FUEL TANK PRESSURE SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].) (See FUEL TANK PRESSURE SENSOR INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))].)
• Is the part normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
|
Repair completion verification 1
|
PURPOSE: VERIFY THAT VEHICLE IS REPAIRED
• Install/connect the part removed/disconnected during the troubleshooting procedure.
• Clear the DTC recorded in the memory. (See CLEARING DTC.)
• Replicate the vehicle conditions at the time the DTC was detected using the following procedure.
• Perform the DTC inspection for the PCM. (See DTC INSPECTION.)
• Is the same Pending DTC present?
|
Yes
|
Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.
If the CAN communication is normal, perform the diagnosis from Step 1.
• If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].) (See PCM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))].)
|
|
No
|
Go to the next step.
|
||
|
Repair completion verification 2
|
PURPOSE: VERIFY IF OTHER DTCs DISPLAYED
• Perform the DTC inspection. (See DTC INSPECTION.)
• Are any other DTCs displayed?
|
Yes
|
Repair the malfunctioning location according to the applicable DTC troubleshooting.
|
|
No
|
DTC troubleshooting completed.
|
