AIR BAG SYSTEM LOCATION INDEX [TWO-STEP DEPLOYMENT CONTROL SYSTEM – US/CANADA SPEC.]
AIR BAG SYSTEM LOCATION INDEX [TWO-STEP DEPLOYMENT CONTROL SYSTEM – US/CANADA SPEC.]
SM2335922
id0810b4805300

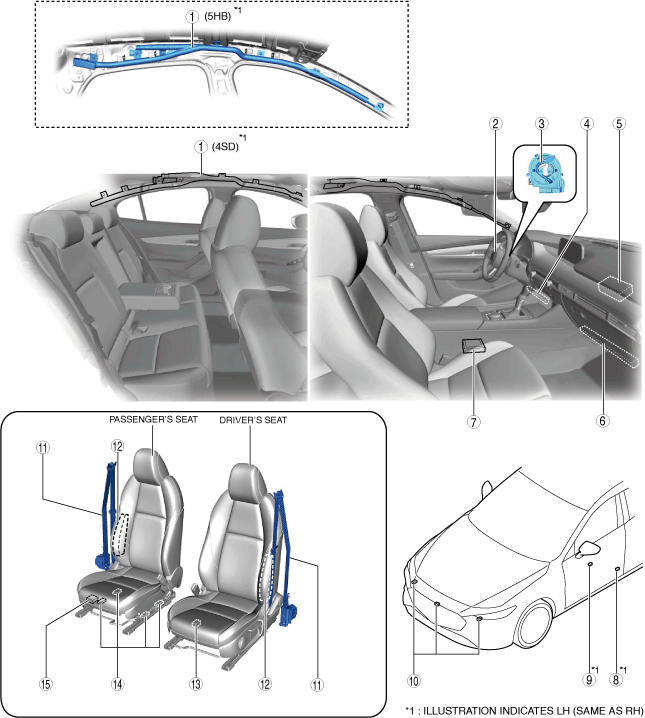

Structural View
am3zzw00021562
|
|
1
|
Curtain air bag module
|
|
2
|
Driver-side air bag module
|
|
3
|
Clock spring
|
|
4
|
Driver-side knee air bag module
|
|
5
|
Passenger-side air bag module
|
|
6
|
Passenger-side knee air bag module
|
|
7
|
SAS control module
|
|
8
|
Side air bag sensor
|
|
9
|
Pressure sensor
|
|
10
|
Crash zone sensor
|
|
11
|
Front pre-tensioner seat belt
|
|
12
|
Side air bag module
|
|
13
|
Seat track position sensor
|
|
14
|
Seat weight sensor
|
|
15
|
Seat weight sensor control module
|
