HVAC CONTROL SYSTEM LOCATION INDEX [FULL-AUTO AIR CONDITIONER (US)]
HVAC CONTROL SYSTEM LOCATION INDEX [FULL-AUTO AIR CONDITIONER (US)]
SM2566268
id0740a18036y1

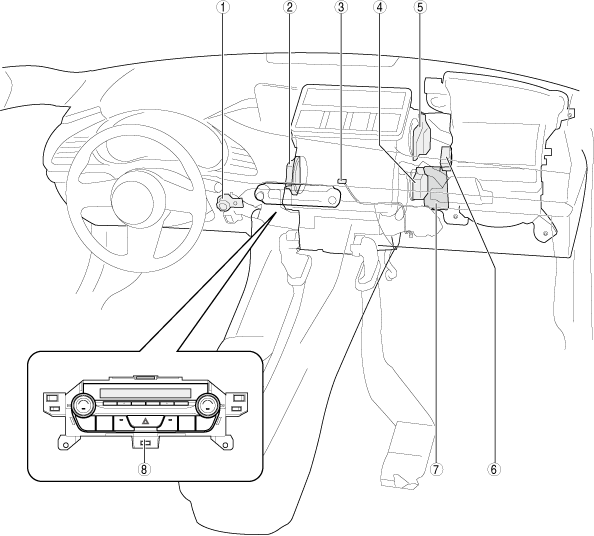

Structural View (Interior)
am3zzw00026525
|
|
1
|
Passenger compartment temperature sensor
|
|
2
|
Driver-side air mix actuator
|
|
3
|
Evaporator temperature sensor
|
|
4
|
Passenger-side air mix actuator
|
|
5
|
Airflow mode actuator
|
|
6
|
Air intake actuator
|
|
7
|
Dash-electrical supply unit
|
|
8
|
Climate control unit
|

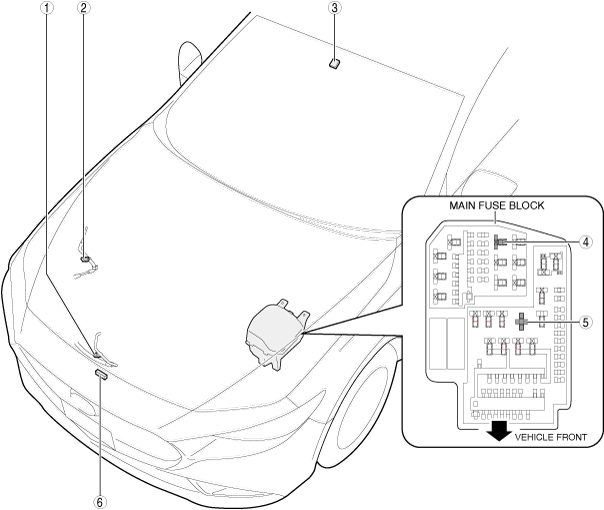

Structural View (Exterior)
am3zzw00021382
|
|
1
|
Refrigerant pressure sensor No.2
|
|
2
|
Refrigerant pressure sensor No.1
|
|
3
|
Solar radiation sensor/humidity sensor
|
|
4
|
A/C relay
(See RELAY LOCATION [(US)].)
(See RELAY INSPECTION.)
|
|
5
|
Blower relay
(See RELAY LOCATION [(US)].)
(See RELAY INSPECTION.)
|
|
6
|
Ambient temperature sensor
|
