HVAC BASIC SYSTEM LOCATION INDEX [(US)]

HVAC BASIC SYSTEM LOCATION INDEX [(US)]

SM2335721

id0711008017x1

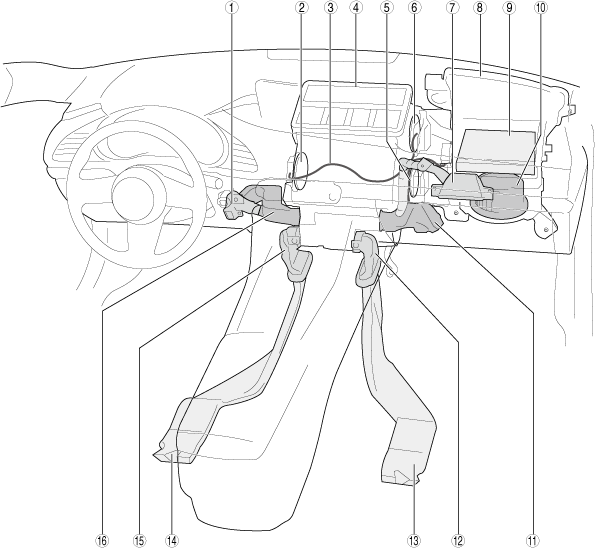

Structural View
am3zzw00021354
1
Driver-side front heat duct No.2
(See FRONT HEAT DUCT REMOVAL/INSTALLATION [(US)].)
2
Driver-side air mix main link (full-auto air conditioner)
(See AIR MIX MAIN LINK REMOVAL/INSTALLATION.)
3
A/C unit short-cord
(See A/C UNIT SHORT-CORD REMOVAL/INSTALLATION [(US)].)
4
A/C unit
(See A/C UNIT REMOVAL/INSTALLATION [(US)].)
(See A/C UNIT DISASSEMBLY/ASSEMBLY [(US)].)
5
Passenger-side air mix main link
(See AIR MIX MAIN LINK REMOVAL/INSTALLATION.)
6
Airflow mode main link
(See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION.)
7
Passenger-side front heat duct No.2
(See FRONT HEAT DUCT REMOVAL/INSTALLATION [(US)].)
8
Blower unit
(See BLOWER UNIT REMOVAL/INSTALLATION [(US)].)
(See BLOWER UNIT DISASSEMBLY/ASSEMBLY [(US)].)
9
Air filter
(See AIR FILTER REMOVAL/INSTALLATION [(US)].)
(See AIR FILTER INSPECTION.)
10
Blower motor
(See BLOWER MOTOR REMOVAL/INSTALLATION [(US)].)
(See BLOWER MOTOR INSPECTION [(US)].)
11
Passenger-side front heat duct No.1
(See FRONT HEAT DUCT REMOVAL/INSTALLATION [(US)].)
12
Passenger-side rear heat duct No.1
(See REAR HEAT DUCT REMOVAL/INSTALLATION [(US)].)
13
Passenger-side rear heat duct No.2
(See REAR HEAT DUCT REMOVAL/INSTALLATION [(US)].)
14
Driver-side rear heat duct No.2
(See REAR HEAT DUCT REMOVAL/INSTALLATION [(US)].)
15
Driver-side rear heat duct No.1
(See REAR HEAT DUCT REMOVAL/INSTALLATION [(US)].)
16
Driver-side front heat duct No.1
(See FRONT HEAT DUCT REMOVAL/INSTALLATION [(US)].)

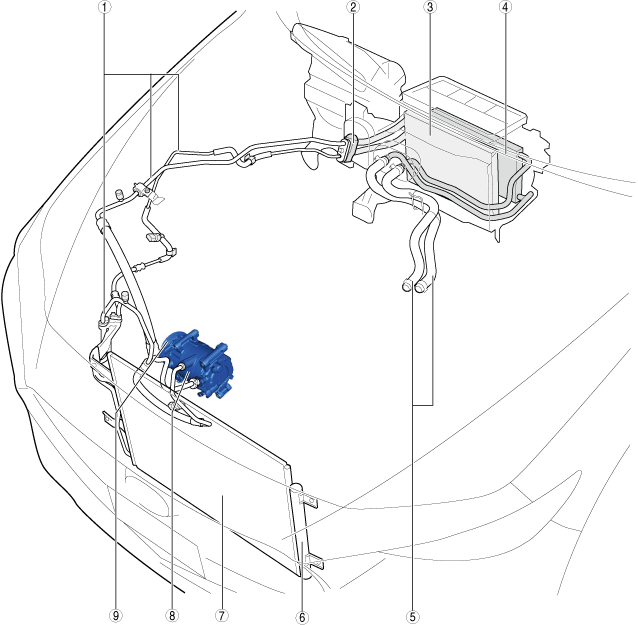

Structural View (SKYACTIV-G 2.0, SKYACTIV-G 2.5)
am3zzw00021355
1
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
2
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION [(US)].)
3
Evaporator
(See EVAPORATOR INSPECTION [(US)].)
4
Heater core
(See HEATER CORE INSPECTION [(US)].)
5
Heater hose
(See HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
6
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
7
Condenser
(See CONDENSER REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See CONDENSER INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
8
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
9
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See MAGNETIC CLUTCH INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
