FUEL-FILLER LID LOCK ACTUATOR REMOVAL/INSTALLATION [(US)]

id0914007007x1

4SD

1.Open the fuel-filler lid.

Note

• If the fuel-filler lid cannot be opened due to a discharged battery or malfunctions in the electrical system, open the fuel-filler lid referring to the [FUEL-FILLER LID LOCK ACTUATOR MANUAL RELEASE PROCEDURE]. (See FUEL-FILLER LID LOCK ACTUATOR MANUAL RELEASE PROCEDURE [(US)].)

2.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

3.Remove the following parts:

(1)Rear tire (LH) (See WHEEL AND TIRE SPECIFICATION [(US)].)

(2)Rear mudguard (LH) (See MUDGUARD REMOVAL/INSTALLATION.)

(3)Fuel-filler pipe (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))].) (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].)

(4)Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(5)Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(US)].)

(6)Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

4.Partially peel the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(US)].)

5.Remove the trunk side insulator (LH). (See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION.)

6.Disconnect the connector.

am3zzw00022271

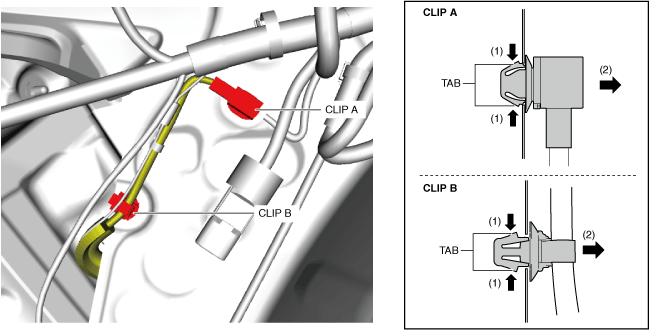

7.Remove the clip A and B.

am3zzw00028081

8.Apply protective tape to the location shown in the figure to prevent scratches or damage.

am3zzw00022273

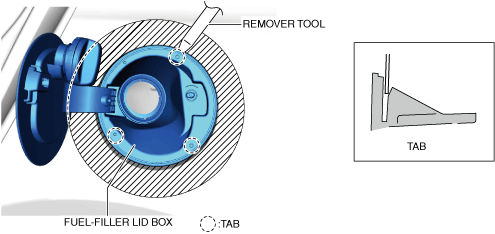

9.Detach the fuel-filler lid box tabs from the body using a remover tool.

am3zzw00028082

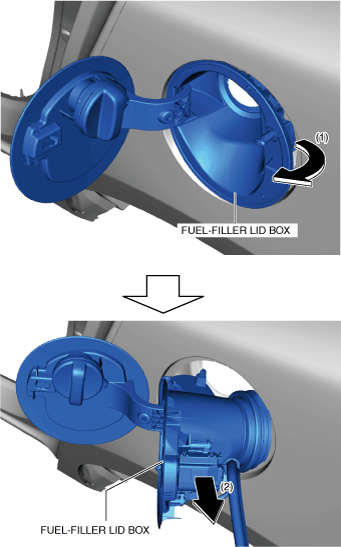

10.Move the fuel-filler lid box in the order of arrows (1) and (2) shown in the figure and remove the fuel-filler lid box. (See Fuel-filler lid box installation note.)

am3zzw00028785

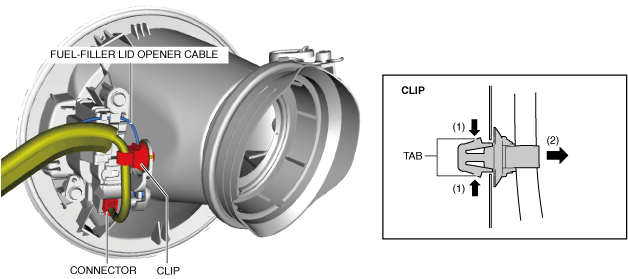

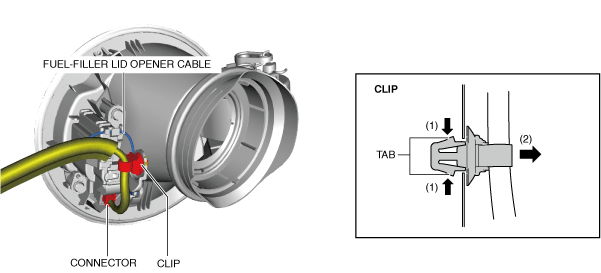

11.Remove the clip.

am3zzw00028786

12.Disconnect the connector.

13.Disconnect the fuel-filler lid opener cable. (with fuel-filler lid opener cable)

14.Remove the screws.

am3zzw00022277

15.Remove the fuel-filler lid lock actuator.

16.Install in the reverse order of removal.

Fuel-filler lid box installation note

1.Insert the fuel-filler lid lock actuator short-cord and fuel-filler lid opener cable (with fuel-filler lid opener cable) .

am3zzw00028787

2.Install the fuel-filler lid box.

am3zzw00028788

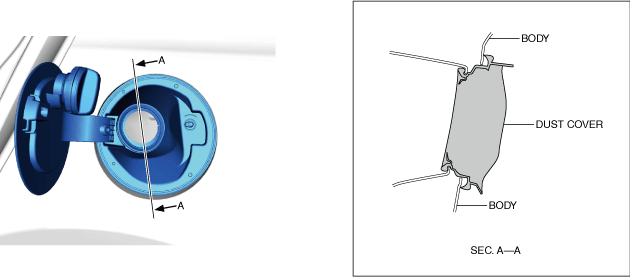

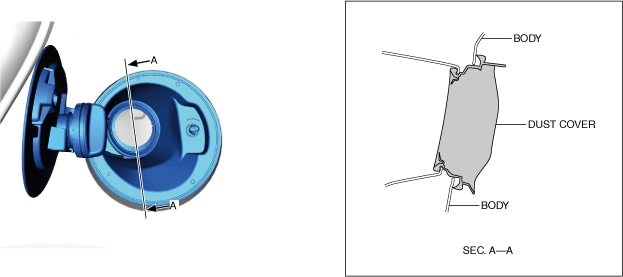

3.Verify that the dust cover is assembled to the body.

am3zzw00028789

5HB

1.Open the fuel-filler lid.

Note

• If the fuel-filler lid cannot be opened due to a discharged battery or malfunctions in the electrical system, open the fuel-filler lid referring to the [FUEL-FILLER LID LOCK ACTUATOR MANUAL RELEASE PROCEDURE]. (See FUEL-FILLER LID LOCK ACTUATOR MANUAL RELEASE PROCEDURE [(US)].)

2.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

3.Remove the following parts:

(1)Rear tire (LH) (See WHEEL AND TIRE SPECIFICATION [(US)].)

(2)Rear mudguard (LH) (See MUDGUARD REMOVAL/INSTALLATION.)

(3)Fuel-filler pipe (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))].) (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].)

(4)Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(5)Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(6)Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(US)].)

(7)Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(8)Trunk side upper trim (LH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

4.Partially peel the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(US)].)

5.Remove the trunk side insulator (LH). (See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION.)

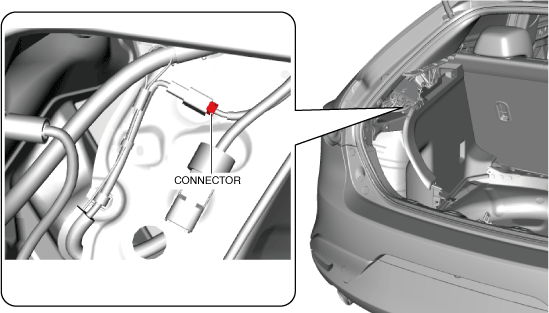

6.Disconnect the connector.

am3zzw00022279

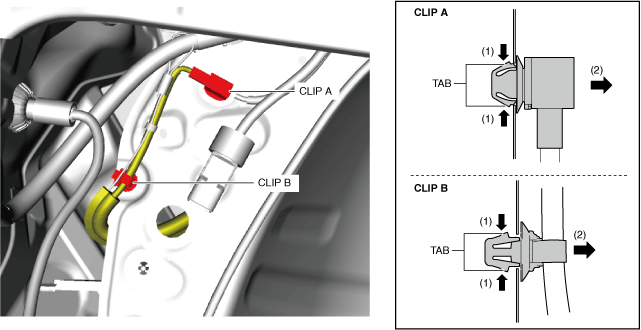

7.Remove the clip A and B.

am3zzw00028085

8.Apply protective tape to the location shown in the figure to prevent scratches or damage.

am3zzw00028790

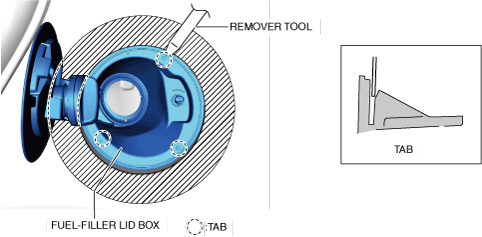

9.Detach the fuel-filler lid box tabs from the body using a remover tool.

am3zzw00028791

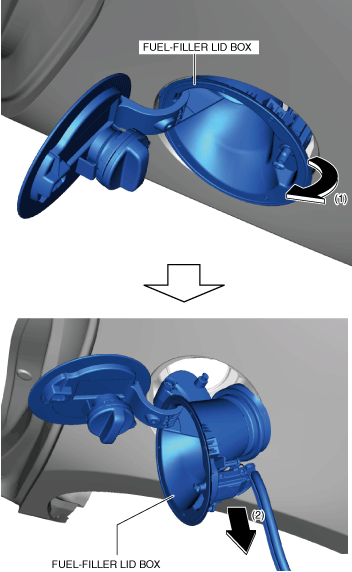

10.Move the fuel-filler lid box in the order of arrows (1) and (2) shown in the figure and remove the fuel-filler lid box. (See Fuel-filler lid box installation note.)
