DTC U213D:00 [PCM (SKYACTIV-G (US))]

DTC U213D:00 [PCM (SKYACTIV-G (US))]

SM2565524

id0102t40121u0



Outline

System malfunction location

CAN communication: communication error to TCM (Local CAN)
Detection condition
• Communication error between the PCM and TCM continues for 5 s or more.
Fail-safe
• Controls the turbine rotation signal at 0.
• Inhibits the AT torque reduction request.
Possible cause

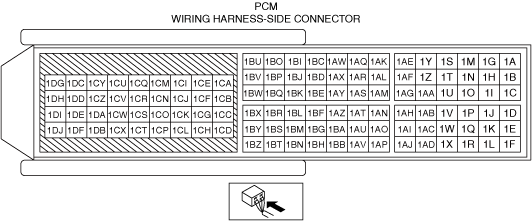

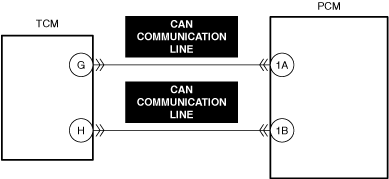

• CAN communication line malfunction between PCM and TCM
• TCM malfunction
• PCM malfunction



Diagnostic Procedure

Step

Inspection

Results

Action
1
RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION
• Record the freeze frame data/snapshot data.

Note
• Recording can be facilitated using the screen capture function of the PC.
—
Go to the next step.
2
VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY
• Verify related Service Bulletins, on-line repair information, or Service Information availability.
• Is any related Information available?
Yes
Perform repair or diagnosis according to the available information.
• If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT FOR OTHER RELATED DTCs
• Perform the DTC inspection for the PCM. (See DTC INSPECTION.)
• Are any other DTCs displayed?
Yes
Repair the malfunctioning location according to the applicable DTC troubleshooting.
(See DTC TABLE [PCM (SKYACTIV-G (US))].)
No
Go to the next step.
4
VERIFY TCM DTC
• Perform the DTC inspection for the TCM. (See DTC INSPECTION.)
• Are any DTCs displayed?
Yes
Repair the malfunctioning location according to the applicable DTC troubleshooting.
(See ON-BOARD DIAGNOSTIC SYSTEM DTC TABLE [TCM (ET6A-EL) (US)].)
(See ON-BOARD DIAGNOSTIC SYSTEM DTC TABLE [TCM (EV6A-EL, EV6AX-EL) (US)].)
No
Go to the next step.
5
INSPECT TCM FOR MALFUNCTION DEPENDING ON REPEATABILITY
• Install/connect the part removed/disconnected during the troubleshooting procedure.
• Clear the DTC recorded in the memory. (See CLEARING DTC.)
• Replicate the vehicle conditions at the time the DTC was detected using the following procedure.
― Start the engine.
• Perform the DTC inspection for the PCM. (See DTC INSPECTION.)
• Is the same Pending DTC present?
Yes
Replace the control valve body and perform the repair completion verification 1.
(See CONTROL VALVE BODY REMOVAL/INSTALLATION [ET6A-EL (US)].)
(See CONTROL VALVE BODY REMOVAL/INSTALLATION [EV6A-EL, EV6AX-EL].)
No
Go to repair completion verification 2.
Repair completion verification 1
VERIFY THAT VEHICLE IS REPAIRED
• Install/connect the part removed/disconnected during the troubleshooting procedure.
• Clear the DTC recorded in the memory. (See CLEARING DTC.)
• Replicate the vehicle conditions at the time the DTC was detected using the following procedure.
― Start the engine.
• Perform the DTC inspection for the PCM. (See DTC INSPECTION.)
• Is the same Pending DTC present?
Yes
Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.
(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(US)].)
If the CAN communication is normal, perform the diagnosis from Step 1.
• If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].) (See PCM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))].)
No
Go to the next step.
Repair completion verification 2
VERIFY IF OTHER DTCs DISPLAYED
• Perform the DTC inspection. (See DTC INSPECTION.)
• Are any other DTCs displayed?
Yes
Repair the malfunctioning location according to the applicable DTC troubleshooting.
No
DTC troubleshooting completed.
