4SD

1.Position the front seat back to the fully reclined position and slide the front seat to its furthest rearward position.

2.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

3.Remove the following parts:

(1)Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(US)].)

(2)Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(3)Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(4)A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(5)Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(6)B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(7)C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(8)Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R].)

(9)Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(10)Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(11)Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(12)Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(13)Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(14)Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(US)].)

(15)Rear console bracket No.1 (See REAR CONSOLE REMOVAL/INSTALLATION [(US)].)

(16)Headliner (See HEADLINER REMOVAL/INSTALLATION [(US)].)

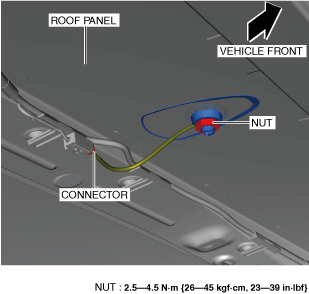

4.Disconnect the connector.

am3zzw00021913

5.Remove the nut.

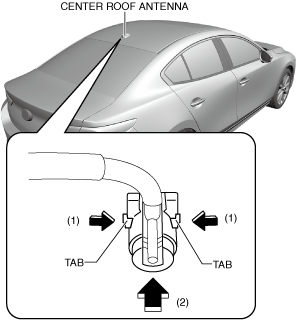

6.While pressing the center roof antenna tabs in the direction of arrows (1) shown in the figure, press the center roof antenna in the direction of arrow (2) to detach the center roof antenna tabs from the body.

am3zzw00021914

7.Install in the reverse order of removal.

5HB

1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the following parts:

(1)Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(US)].)

(2)Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(3)Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(4)A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(5)Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(6)B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(7)Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(8)Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(9)C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

3.Disconnect rear washer hose B.

am3zzw00024087

4.Pull the roof wiring harness and rear washer hose B in the direction of the arrow shown in the figure and pull them out.

am3zzw00024088

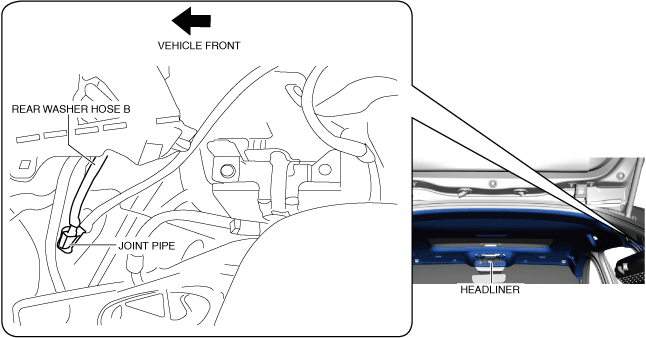

5.Disconnect rear washer hose B from the joint pipe.

am3zzw00024089

6.Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrow, and detach the clips.

am3zzw00021919

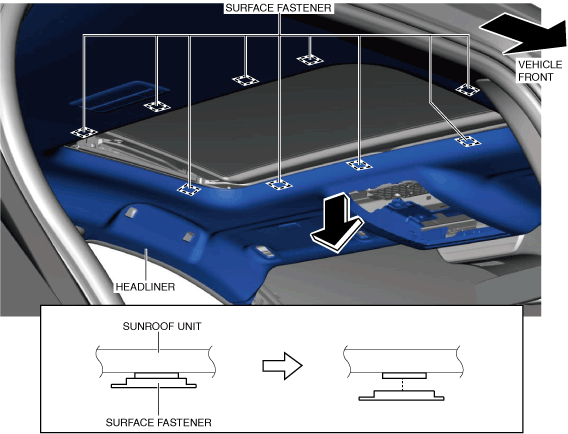

7.Move the headliner in the direction of the arrow shown in the figure and detach the surface fasteners from the sunroof unit. (with sunroof system)

am3zzw00029176

8.Partially peel back the seaming welts.

am3zzw00021920

9.Move the headliner in the direction of the arrow shown in the figure and set it on front seats and rear seats.

am3zzw00021921

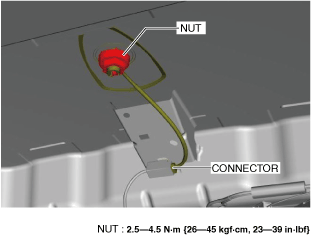

10.Disconnect the connector.

am3zzw00021922

11.Remove the nut.

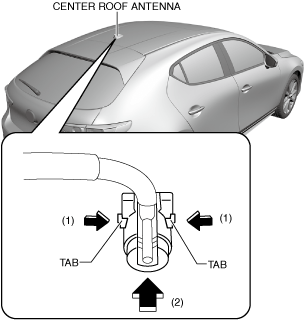

12.While pressing the center roof antenna tabs in the direction of arrows (1) shown in the figure, press the center roof antenna in the direction of arrow (2) to detach the center roof antenna tabs from the body.

am3zzw00021923

13.Remove the center roof antenna.

14.Install in the reverse order of removal.
