USB PORT INSPECTION
USB PORT INSPECTION
SM2336653
id092000799000
1.Switch the ignition ON (engine off).

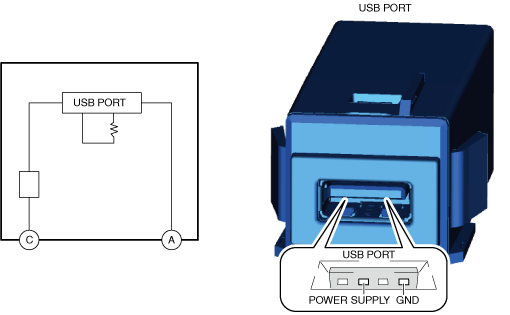

2.Measure the voltage between the USB port power supply and GND.
am3zzw00029429
|
-
If the voltage is from 4.75 V to 5.25 V:
-
• The USB power outlet is normal.
-
If the voltage is less than 4.75 V or higher than 5.25 V:
-
• Replace the USB power outlet. (See USB PORT REMOVAL/INSTALLATION [(US)].)
