1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the following parts:

(1)Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(4)Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))].) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].)

(5)Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(US)].)

3.Partially peel back the floor covering.

4.Remove the fastener.

am3zzw00021771

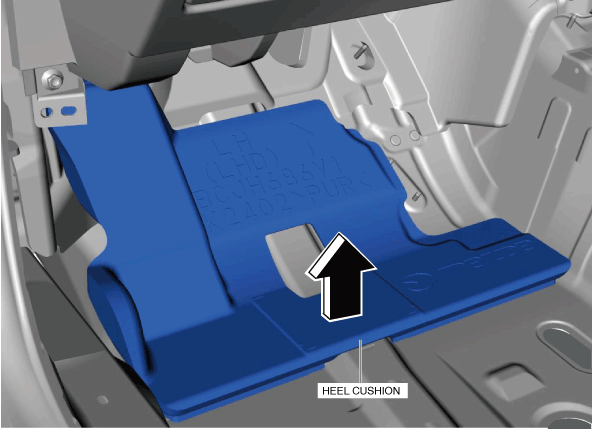

5.Pull the heel cushion in the direction of the arrow shown in the figure and remove it.

am3zzw00021772

6.Install in the reverse order of removal.
