COMMANDER SWITCH [(US)]

COMMANDER SWITCH [(US)]

SM2566542

id1600000019a1

Note
• iPod, iPhone, and Apple CarPlay are registered trademarks of Apple Inc.
• Android, and Android Auto are registered trademarks of Google LLC.



Purpose, Function

• Volume can be adjusted and the center display can be operated without the driver having to change posture.

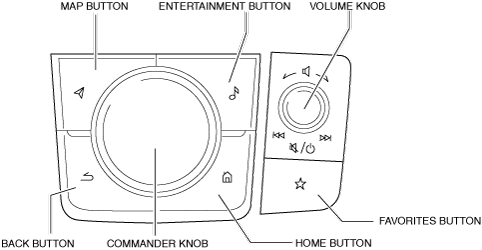

• The commander switch consists of the following buttons, dial, and knobs.
bmcozp00000402

Button/knob/dial name

Function
AUDIO button
Switches the display screen of the center display to the entertainment screen.
HOME button
• Switches the display screen of the center display to the home screen.
• When the HOME button is pressed and held, the display screen of the center display switches to the Apple CarPlay™ home screen.
• When the HOME button is pressed and held, the display screen of the center display switches to the Android Auto™ home screen.
NAV button (With car-navigation system)
Switches the display screen of the center display to the navigation screen.
BACK button
Switches to the screen directly previous to the currently displayed screen.
FAVORITES button
• Displays favorites in the center display.
• When the button is long-pressed with the screen to be added to the favorites displayed, the target is added to the favorites.
Volume dial
• When the volume dial is rotated, the volume can be adjusted.
• When the volume dial is pressed, the volume can be muted. Pressing again after muting returns to previous volume level.
Commander knob (tilt *1)
Moves the selection area on the center display screen. The selection area can be tilted in the lateral direction for left/right, and the longitudinal direction for forward/back.
Commander knob (rotation)
Moves the selection area on the center display screen. The selection area moves according to the rotation direction.
Commander knob (click *2)
• Switches to the selected menu screen.
• Launches the selected menu.
*1:Tilting of the commander knob forward/back, left/right.
*2:Press the commander knob.



Construction

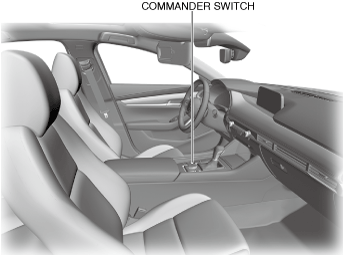

• The commander switch is positioned in the upper part of the rear console.
bmcozp00000403
