CENTER DISPLAY [(US)]

SM2566535

id1600000004a1

Note

• iPod, iPhone, and Apple CarPlay are registered trademarks of Apple Inc.

• Android, and Android Auto are registered trademarks of Google LLC.

Purpose

• The center display displays entertainment system and vehicle information.

Function

• The center display displays video images based on the signal sent by the GMSL signal from the connectivity master unit (CMU).

• The center display is touch-type LCD. The display touch position information is sent by GMSL signal to the CMU.

• The GMSL communication pathway between the CMU and the center display corresponds to HDCP.

Temperature detection function

• The center display detects temperature using a temperature sensor.

• The center display converts the temperature detected by the temperature sensor to an electrical signal (GMSL signal) and sends it to the CMU.

Note

• If the center display receives a temperature warning pop-up screen display request signal (GMSL signal) from the CMU, it displays the temperature warning pop-up screen on the LCD.

Display information

• The information displayed by the center display is as follows: Refer to the referenced section for details of the displayed information.

Display content	Reference
Home screen	(See Home screen.)
Information screen	(See Information screen.)
Entertainment screen	(See Entertainment screen.)
Communication screen	(See Communication screen.)
Navigation screen	(See Navigation screen.)
Setting screen	(See Settings screen.)
Apple CarPlay™	(See Apple CarPlay™.)
Android Auto™	(See Android Auto™.)

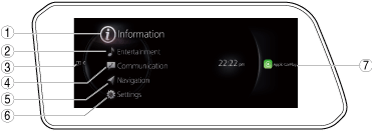

Home screen

• The home screen displays entertainment system information.

• When the ignition is switched to ACC or ON (engine off or on), the home screen is displayed in the center display.

bmcozp00000411

No.	Menu
1	Information screen
2	Entertainment screen
3	Notifications screen
4	Communication screen
5	Navigation screen ^*3
6	Setting screen
7	Apple CarPlay™ ^*4
7	Android Auto™ ^*5

*3 :With car-navigation system

*4 :When Apple CarPlay™ is available.

*5 :When Android Auto™ is available.

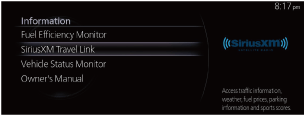

Information screen

• Information concerning fuel efficieny monitor, SiriusXM travel link ^®, vehicle status monitor, owner’s manual and warnings can be verified.

bmcozp00000412

Display content	Reference
Fuel Efficiency Monitor	(See Fuel efficiency monitor .)
SiriusXM travel link ^®	(See SiriusXM travel link®.)
Vehicle Status Monitor	(See Vehicle Status Monitor.)
Owner’s manual	(See Owner’a Manual.)

Fuel efficiency monitor

• Displays the fuel efficiency information.

Fuel efficiency monitor verification procedure

1. Select the “Information” button on the Home screen.

2. Select [Fuel Efficiency Monitor] on the information screen to display the guidance.

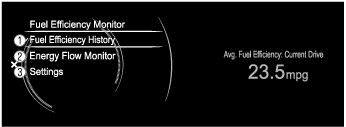

• The buttons on the menu screen operate as follows:

Display	Content
	1	Displays the information regarding the fuel efficiency.
	2	Displays the system operation status.
	3	Displays the settings for the fuel efficiency monitor.

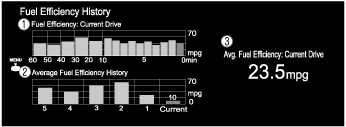

Fuel Consumption

• The information regarding the fuel economy is displayed.

Display	Content
	1	• Displays the fuel economy for the past 60 minutes. ― Displays the fuel economy every minute for the past 1 to 10 minutes. ― Displays the fuel economy every 10 minutes for the past 10 to 60 minutes.
	2	Displays the average fuel economy over the past 5 resets and after the current reset.
	3	• Displays the average fuel economy from when the ignition is switched ON (engine on) to the current time. • The average fuel economy is updated every 60 s. • If there is no average fuel economy data, displays “— —”.

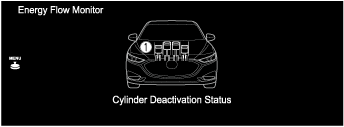

Energy Flow Monitor

• The information regarding the energy flow monitor is displayed.

Display	Content
	1	The condition of each cylinder is displayed by colors. The operating cylinders are displayed in red.

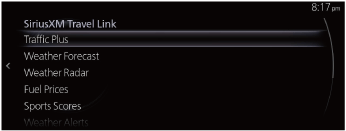

SiriusXM travel link^®

• Displays the SiriusXM travel link ^® information.

SiriusXM travel link ^® verification procedure

1. Select the “Information” button on the Home screen.

2. Select [SiriusXM travel link ] on the information screen to display the guidance.

• The buttons on the menu screen operate as follows:

Display	Menu	Explanation
	Traffic Plus ^*6	Displays continuously updated traffic information on the navigation screen in real time.
	Weather Forecast	Displays the weather forecast.
	Weather Radar ^*6	Displays items such as weather radar, severe storms, and tropical storm information on the navigation screen.
	Fuel Prices ^*6	Displays information for gas stations.
	Sports Scores	Displays a list of each genre list and the game schedules and match results for teams selected from the list. You can check on the details of a team by registering the team to “My Teams”. Up to 50 items can be registered.
	Weather Alerts ^*7	Displays weather information, warnings, and security alerts. You can also turn the notifications on/off by selecting or deselecting the checkbox of “Alert Notifications”.
	Parking Information ^*6	Displays information for parking areas.
	Subscription Status	You can check the status of each service subscription.

*6 :With Car navigation system

*7 :Available features differ depending on the country.

Vehicle Status Monitor

• Displays the vehicle status monitor information.

Vehicle Status Monitor verification procedure

1. Select the “Information” button on the Home screen.

2. Select [Vehicle Status Monitor ] on the information screen to display the guidance.

• The buttons on the menu screen operate as follows:

Item		Explanation
Vehicle Warning Messages		If there is a problem with the vehicle, information about the problem is displayed.
Next Service		The next maintenance period is displayed. Date • The date manually set by the customer is displayed. Distance • If “Next Service Date” is set to “Automatic” ― The “Distance Until Oil Change” content is displayed. • If “Next Service Date” is set to “Manual” ― The traveled distance manually set by the customer is displayed. However, when any of the following conditions is met, the “Distance Until Oil Change” content is displayed. You have not set the traveled distance. “Distance Until Oil Change” is shorter than the traveled distance set by the customer
Maintenance Details	Engine Oil Level	The engine oil level is displayed.
	Distance Until Oil Change	The traveled distance until engine oil needs to be replaced is displayed.
	Next Service	The next maintenance period manually set by the customer is displayed
	Tire pressure monitor
	Tire pressure monitor	The current tire pressure can be checked. 1. When tire pressures were last modified 2. Air pressure of each tire 3. Condition of each tire ― When air pressure is low: Yellow color ― When air pressure is correct: Blue color ― When air pressure cannot be monitored: Black color 4. Tire pressure units
Vehicle Maintenance Settings	Next Service Date	The method of setting the next maintenance can be selected from the following. • Automatic • Manual
	Set Next Service Date	If “Next Service Date” is set to “Manual”, the next maintenance date can be set.
	Set Next Service Distance	If “Next Service Date” is set to “Manual”, the traveled distance until the next maintenance period can be set.
	Reset Oil Change Distance	The “Distance Until Oil Change” content can be reset. After replacing the engine oil, perform the reset (engine oil data resetting) of the recorded value in this item.

Owner’a Manual

Learn about Mazda features, safety information, maintenance, and more.

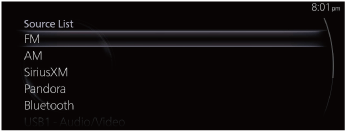

Entertainment screen

• When the entertainment button on the home screen is selected, the entertainment screen is displayed. The following audio functions in the table below are available.

bmcozp00000418

Display content	Function
FM	Switches to FM radio screen.
AM	Switches to AM radio screen.
SiriusXM ^®	Switches to SiriusXM ^® satellite radio screen.
Pandora ^®	Switches to Pandora ^® screen. Note • Pandora ^® is not displayed in gray even if the connected mobile device is not compatible with Pandora ^®.
Bluetooth <Device Name>	Switches to Bluetooth ^® audio screen. Note • If available, the connecting device name is displayed. When Bluetooth ^® is not available, such as no device is connected, only Bluetooth ^® is displayed.
USB1 <Device Name>	Switches to USB audio/USB video screen. Note • If available, the connecting device name is displayed. When USB1 is not available, such as no device is connected, only USB1 is displayed.
USB2 <Device Name>	Switches to USB audio/USB video screen. Note • If available, the connecting device name is displayed. When USB2 is not available, such as no device is connected, only USB2 is displayed.

Note

• When iPhone® is connected to the USB port of the USB port/SD card slot hub, Apple CarPlay™ is indicated at the position of USB1 indicated on the center display.

• When Android™ is connected to the USB port of the USB port/SD card slot hub, Android Auto™ is indicated at the position of USB1 indicated on the center display.

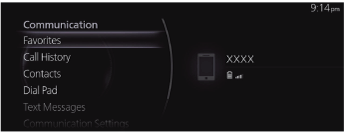

Communication screen

• SMS (Short Message Service), and Hands-free telephone (HF/TEL) functions can be used.

bmcozp00000419

Display content	Function
Favorites	Switches to the favorite screen.
Call History	Displays the call history.
Contacts	Displays the phone book.
Dial Pad	Switches to the dial screen for phone number input.
Text Messages	Switches to the tyext messages screen.
Communication Settings	Switches ON/OFF of the SMS notification function.

Note

• If Bluetooth ^® communication is not established between a mobile device such as a Bluetooth ^®-enabled smart phone, the functions dependent on the mobile device are displayed in gray and they are not available.

• If there any unread notification or SMS, the number of unread messages is displayed beside each item name. The number of missed call is displayed next to “Call History”.

Navigation screen

• When the navigation button on the home screen is selected, the navigation screen is displayed. Navigation information such as the current position and route guidance to destination is displayed on this screen.

Settings screen

• The following settings can be changed. For details, refer to the [ENTERTAINMENT SYSTEM] setting function. (See ENTERTAINMENT SYSTEM [(US)].)

Menu	Reference
In-Vehicle Displays	(See ENTERTAINMENT SYSTEM [(US)].)	Configures settings and content for all in-vehicle displays.
Sound Settings		Configures the in-vehicle listening experience.
Vehicle Settings		Configures vehicle convenience features.
Safety Settings		Configures safety and driver assistance features.
Connectivity Settings		Connection settings can be configured for linking Bluetooth® and Smartphone functions.
System Settings		Configures language, time, and other general settings.

Apple CarPlay™

Apple CarPlay™ home screen display procedure

• The Apple CarPlay™ home screen is displayed when any of the following operations are performed.

― Select [Apple CarPlay™] on home screen.

― Long-press center display/commander switch HOME button.

• The display content is as follows.

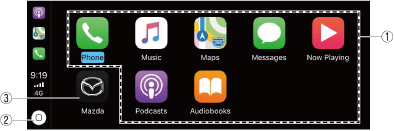

Apple CarPlay™ mode home screen

Display	Content
	1	Launch the Apple CarPlay™ application.
	2	Displays the Apple CarPlay™ home screen.
	3	Displays the Mazda Connect screen.

Android Auto™

Android Auto™ home screen display procedure

• The Android Auto™ home screen is displayed when any of the following operations are performed.

― Select [Android Auto™] on home screen.

― Long-press center display/commander switch HOME button.

• The display content is as follows.

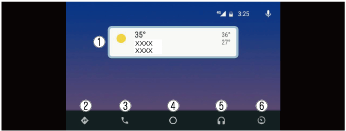

Android Auto™mode home screen

Display	Content
	1	Displays the use history of each application. The displayed contents differdepending on the application that has been started and its status.
	2	Switches to the map application.
	3	Switches to the call mode.
	4	Displays the Android Auto™ home screen.
	5	Switches to the Music application.
	6	Switches to the Mazda Connect screen.

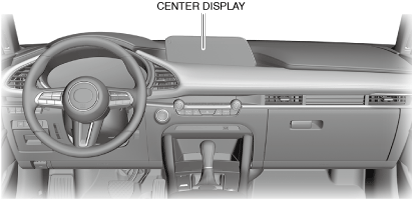

Construction

• The center display is installed in the center of the dashboard.

• The center display has a built-in temperature sensor.

bmcozp00000422
