WIPER AND WASHER SWITCH INSPECTION [(US)]
WIPER AND WASHER SWITCH INSPECTION [(US)]
SM2566424
id0919008028x1
1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
2.Remove the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(US)].)

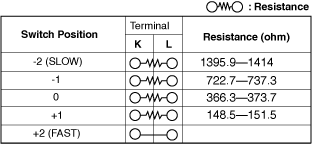

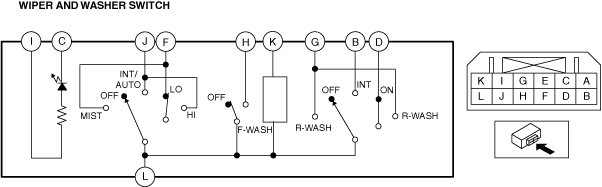

3.Verify that the continuity between the wiper and washer switch terminals is as indicated in the table.
ac30zw00002588
|
am3zzw00027447
|
am3zzw00027448
|
am3zzw00027449
|
ac30zw00002589
|
-
• If the continuity is not as indicated in the table, replace the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(US)].)
