VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))]

VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))]

SM2565970


id041100803662

Replacement Part

O-ring
Quantity: 1
Location of use: Vacuum pump
Warning
• A hot engine can cause severe burns. Turn off the engine and wait until it is cool before removing the exhaust system.

1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].)

• Air hose
• Air cleaner cover
• Air cleaner element
• Air cleaner case
• Fresh-air duct
• Resonance chamber

3.Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].)

4.Remove the battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].)

5.Set the PCM wiring harness out of the way.

6.Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].)

7.Pinch open the clamp using pliers and disconnect the vacuum hose from the vacuum pump. (See VACUUM HOSE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].)

8.Remove in the order shown in the table.

9.Install in the reverse order of removal.

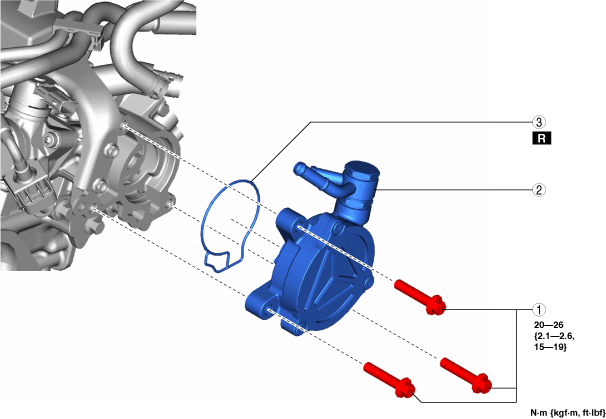

am3zzw00022471
1
Bolt
2
Vacuum pump
3
O-ring



Vacuum Pump Removal Note

1.When removing the vacuum pump, place a clean cloth under the installation surface of the vacuum pump so that engine oil does not get on other parts.

2.Remove the vacuum pump.



Vacuum Pump and O-ring Installation Note

1.Rotate the vacuum pump by hand to drain the remainder of the engine oil in the vacuum pump.

2.Degrease the O-ring installation groove and installation surface.

3.Install the O-ring to the vacuum pump.

4.Install the vacuum pump.
