CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))]
CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))]
SM2565860
id0140u0801500
Replacement Part
|
O-ring
Quantity: 1
Location of use: Intake CMP sensor
|
O-ring
Quantity: 1
Location of use: Exhaust CMP sensor
|
Oil and Chemical Type
|
Engine oil
Type: Recommended oil
|
-
Caution
-
• When replacing the CMP sensor, make sure there is no foreign matter on it such as metal shavings. If it is installed with foreign matter, the sensor output signal will malfunction resulting from fluctuation in magnetic flux and cause a deterioration in engine control.
Intake CMP Sensor
1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
2.Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].)
3.Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].)
4.Disconnect the intake CMP sensor connector.
5.Remove the intake CMP sensor.

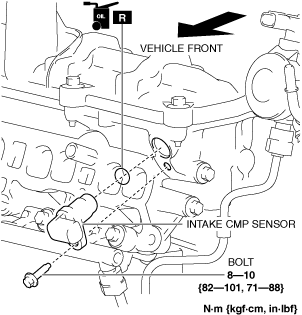

ac5uuw00003522
|
6.Install in the reverse order of removal.
Exhaust CMP Sensor
1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
2.Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].)
3.Disconnect the exhaust CMP sensor connector.
4.Remove the exhaust CMP sensor.

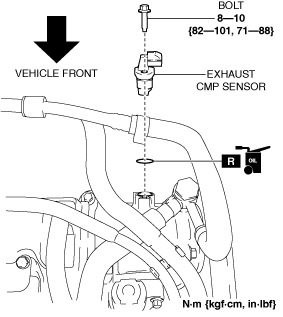

ac5uuw00003523
|
5.Install in the reverse order of removal.
