TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION

TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION

SM2336587

id091800806200

1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

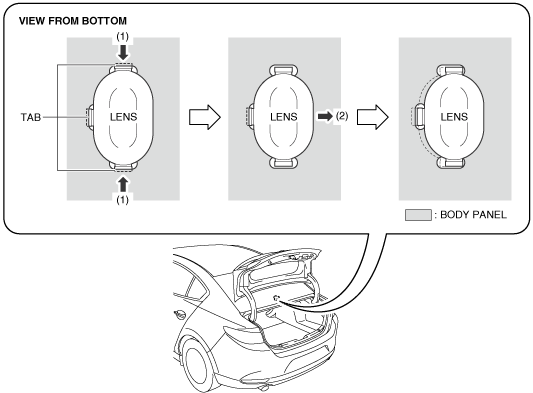

2.While pressing the lens in the direction of arrows (1) shown in the figure, move the lens in the direction of arrow (2) to detach the lens tabs from the body panel.
am3zzw00027105

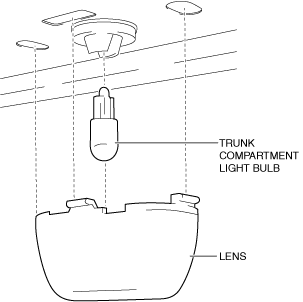

3.Remove the lens.
am3zzw00027106

4.Remove the trunk compartment light bulb.

5.Install in the reverse order of removal.
