1.Open the console lid.

am3zzw00029140

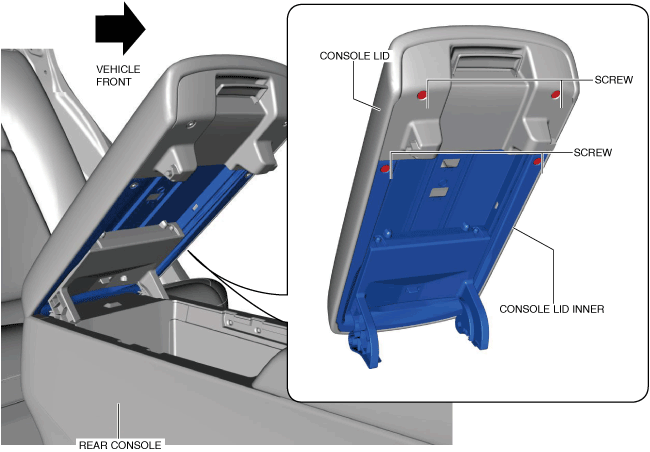

2.Remove the screws.

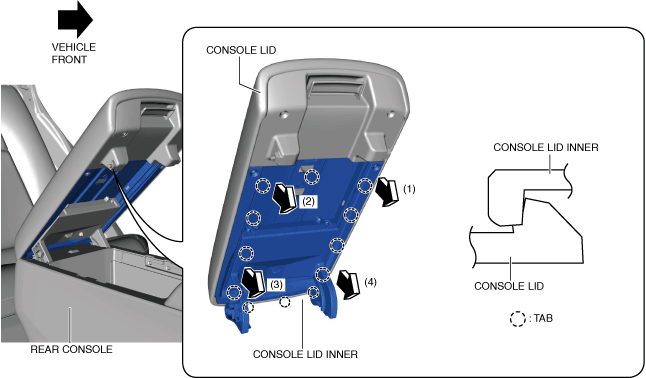

3.Using a remover tool, move the console lid inner in the order of arrows (1), (2), (3), and (4) shown in the figure, detach the tabs, and remove the console lid inner.

am3zzw00029141

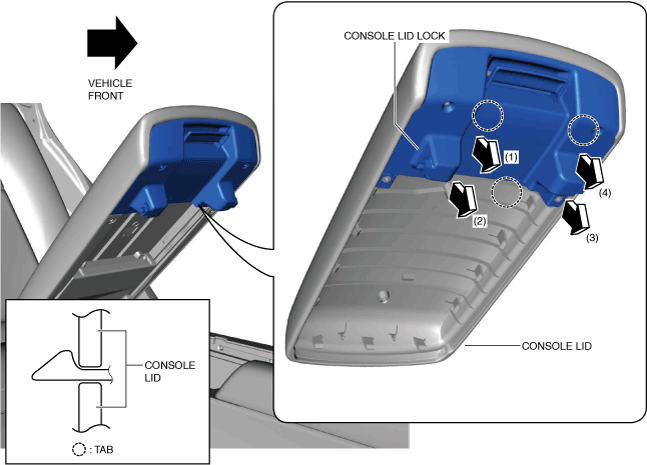

4.Using a remover tool, move the console lid lock in the order of arrows (1), (2), (3), and (4) shown in the figure, detach the tabs, and remove the console lid lock.

am3zzw00029142

5.Install in the reverse order of removal.
