RADIATOR GRILLE DISASSEMBLY/ASSEMBLY [(US)]
RADIATOR GRILLE DISASSEMBLY/ASSEMBLY [(US)]
SM2336488
id0916004601x1
4SD

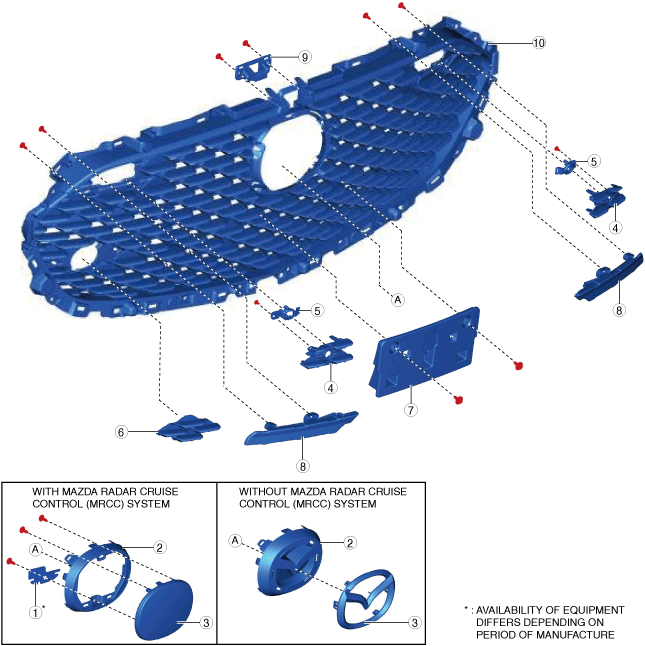

1.Disassemble in the order indicated in the table.
am3zzw00028820
|
|
1
|
Grille guard (with Mazda rader cruise control (MRCC) system)
|
|
2
|
Mascot base
|
|
3
|
Mascot
|
|
4
|
Bracket A
|
|
5
|
Front ultrasonic sensor bracket (with front ultrasonic sensor)
|
|
6
|
Towing hook cover
|
|
7
|
License plate holder
|
|
8
|
Bracket B
|
|
9
|
Cap (without 360° view monitor system)
|
|
10
|
Radiator grille
|
2.Assemble in the reverse order of disassembly.
5HB

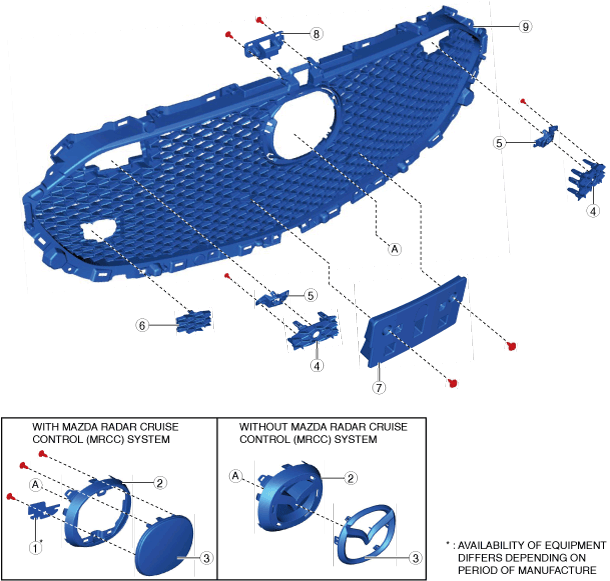

1.Disassemble in the order indicated in the table.
am3zzw00028821
|
|
1
|
Grille guard (with Mazda rader cruise control (MRCC) system)
|
|
2
|
Mascot base
|
|
3
|
Mascot
|
|
4
|
Bracket
|
|
5
|
Front ultrasonic sensor bracket (with front ultrasonic sensor)
|
|
6
|
Towing hook cover
|
|
7
|
License plate holder
|
|
8
|
Cap (without 360° view monitor system)
|
|
9
|
Radiator grille
|
2.Assemble in the reverse order of disassembly.
