TOUCH SENSOR INSPECTION
TOUCH SENSOR INSPECTION
SM2336426
id091400009700
-
Note
-
• The integrity of the touch sensor cannot be determined from a single part. When inspecting the touch sensor, perform the following procedure.
1.Connect the M-MDS to the DLC-2.
2.Perform the DTC inspection for the BCM. (See DTC INSPECTION.)
-
• If DTCs are detected, repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [BODY CONTROL MODULE (BCM) (US)].)• If DTCs are not detected, go to the next step.
3.Access the PID using the M-MDS. (See PID/DATA MONITOR INSPECTION.)

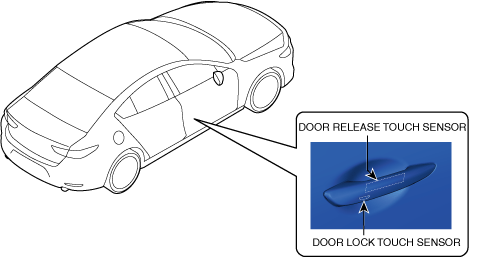

am3zzw00027717
|
LH
|
Test condition
|
Data contents
|
|
|
TOUCH_SEN_LCK_L/F
|
TOUCH_SEN_ULCK_L/F
|
|
|
Door lock touch sensor is touched
|
On
|
Off
|
|
Door release touch sensor is touched
|
Off
|
On
|
|
Except above
|
Off
|
Off
|
RH
|
Test condition
|
Data contents
|
|
|
TOUCH_SEN_LCK_R/F
|
TOUCH_SEN_ULCK_R/F
|
|
|
Door lock touch sensor is touched
|
On
|
Off
|
|
Door release touch sensor is touched
|
Off
|
On
|
|
Except above
|
Off
|
Off
|
-
• If not within the specification, replace the touch sensor. (See TOUCH SENSOR REMOVAL/INSTALLATION.)
