REAR SEAT CUSHION LOCK REMOVAL/INSTALLATION

REAR SEAT CUSHION LOCK REMOVAL/INSTALLATION

SM2336419

id091300999700

1.Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

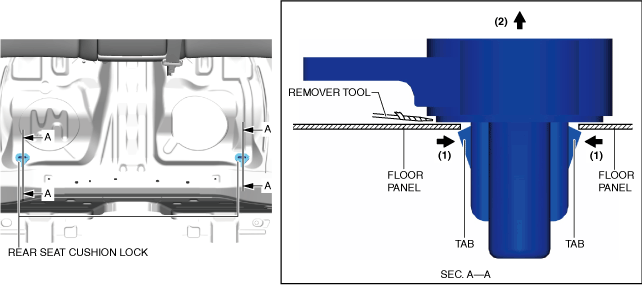

2.Move the remover tool in the direction of arrows (1) shown in the figure and disengage the tabs.
am3zzw00023845

3.Remove the rear seat cushion lock in the direction of arrow (2) shown in the figure.

4.Install in the reverse order of removal.
