REAR POWER WINDOW MOTOR INSPECTION
REAR POWER WINDOW MOTOR INSPECTION
SM2336366
id091200001900
-
Note
-
• The rear power window motor is integrated with the rear power window regulator.
LH
1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
2.Disconnect the power window motor connector. (See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION.)
3.Apply battery positive voltage and connect the ground to power window motor terminals A and F, and then inspect the power window motor operation.
|
B+ Terminal
|
Ground Terminal
|
Operation
|
|
A
|
F
|
Close
|
|
F
|
A
|
Open
|
am3zzw00029820
|
-
• If the power window motor does not operate as indicated in the table, replace it. (See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION.)
RH
1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
2.Disconnect the power window motor connector. (See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION.)
3.Apply battery positive voltage and connect the ground to power window motor terminals B and E, and then inspect the power window motor operation.
|
B+ Terminal
|
Ground Terminal
|
Operation
|
|
B
|
E
|
Close
|
|
E
|
B
|
Open
|

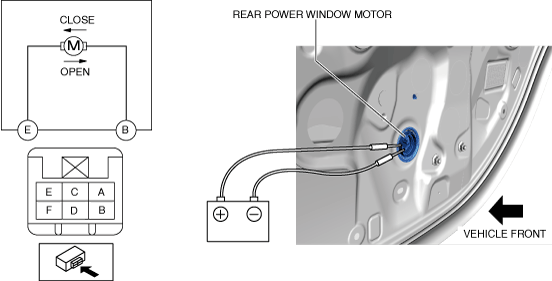

am3zzw00029816
|
-
• If the power window motor does not operate as indicated in the table, replace it. (See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION.)
