FRONT POWER WINDOW MOTOR INSPECTION
FRONT POWER WINDOW MOTOR INSPECTION
SM2336365
id091200001800
-
Note
-
• The front power window motor is integrated with the front power window regulator.
LH
1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
2.Disconnect the power window motor connector. (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION.)
3.Apply battery positive voltage and connect the ground to power window motor terminals A and F, and then inspect the power window motor operation.
|
B+ Terminal
|
Ground Terminal
|
Operation
|
|
A
|
F
|
Close
|
|
F
|
A
|
Open
|

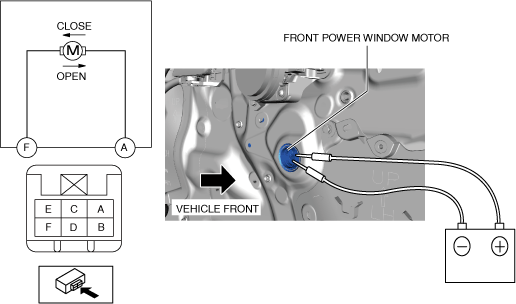

am3zzw00029813
|
-
• If the power window motor does not operate as indicated in the table, replace it. (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION.)
RH
1.Disconnect the negative battery terminal.(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
2.Disconnect the power window motor connector. (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION.)
3.Apply battery positive voltage and connect the ground to power window motor terminals B and E, and then inspect the power window motor operation.
|
B+ Terminal
|
Ground Terminal
|
Operation
|
|
B
|
E
|
Close
|
|
E
|
B
|
Open
|

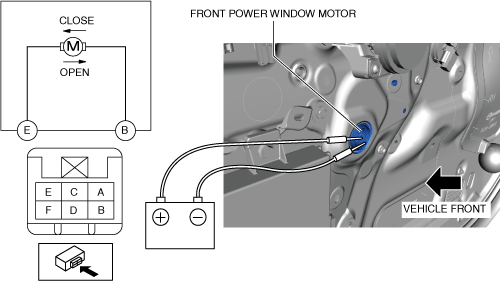

am3zzw00029814
|
-
• If the power window motor does not operate as indicated in the table, replace it. (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION.)
