WHEEL HUB COMPONENT REMOVAL/INSTALLATION [2WD]
WHEEL HUB COMPONENT REMOVAL/INSTALLATION [2WD]
SM2335016
id0312008004a1
Replacement part
|
Rear wheel hub bolt
Quantity: 5
Location of use: Rear wheel hub
|
-
Caution
-
• Performing the following procedures could cause an open circuit in the front ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
1.Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)
2.Switch the ignition ON (engine off).
3.Release the electric parking brake.
4.Switch the ignition off while pressing the electric parking brake switch.
5.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
6.Disconnect the electric parking brake motor gear unit connector. (See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT REMOVAL/INSTALLATION.)
7.Remove the rear ABS wheel-speed sensor and the bracket from the wheel hub component.
am3zzw00023096
|
8.Remove the rear ABS wheel-speed sensor wiring harness and set it aside so that it does not interfere with the servicing.

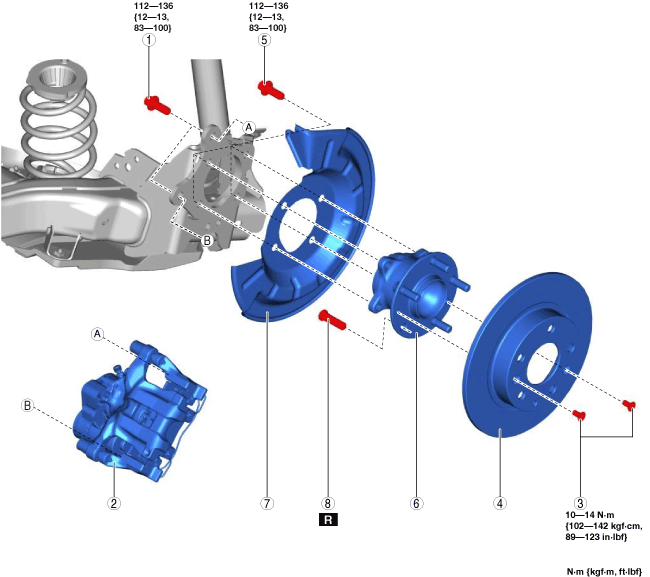

9.Remove in the order indicated in the table.
10.Install in the reverse order of removal.
am3zzw00023097
|
|
1
|
Bolt (rear brake caliper component)
|
|
2
|
Rear Brake caliper component
|
|
3
|
Screw
|
|
4
|
Rear Disc plate
|
|
5
|
Bolt (wheel hub component)
|
|
6
|
Wheel hub component
|
|
7
|
Dust cover
|
|
8
|
Rear wheel hub bolt
|
Rear wheel Hub Bolt Removal Note
-
Note
-
• Remove the rear wheel hub bolt only if there is any malfunction.
1.Remove the rear wheel hub bolt from the wheel hub component using a press.
ac5jjw00003216
|
Rear wheel Hub Bolt Installation Note
1.Press in new rear wheel hub bolt into the wheel hub component using a press.
ac5jjw00003849
|
Wheel Hub Component Installation Note

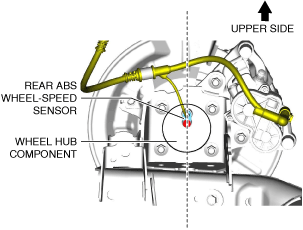

1.Install the wheel hub component with the rear ABS wheel-speed sensor toward the upper side.
am3zzw00023099
|
