TSB NUMBER: 01-19-13

TSB ISSUE DATE

27/11/2019

BULLETIN NOTES

APPLICABLE MODEL(S)/VINS
2016-2019 CX-3
2013-2019 CX-5
2016-2019 CX-9
2016-2019 MX-5
2014-2019 Mazda3
2014-2019 Mazda6

DESCRIPTION

Some vehicles may exhibit oil leakage from the drive belt auto tensioner and rattling noises from the engine compartment. This may be caused by insufficient sealing at the drive belt auto tensioner damper when the auto tensioner fully operates under both high ambient temperature and high load conditions. To eliminate this concern, the shape of the drive belt auto tensioner damper has been changed.


Customers having this concern should have their vehicle repaired using the following repair procedure.

REPAIR PROCEDURE

1. Verify the customer concern.
2. Inspect the drive belt auto tensioner. Is it part number PE01-15-980 or PE03-15-980* according to the EPC3?
     – If no, this service bulletin is not applicable to the subject vehicle.
     – If yes, replace the drive belt auto tensioner with a modified part according to the instructions on MGSS online:

• CX-3: (DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION [SKYACTIV-G 2.0])
• CX-5: (DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T])
• CX-5: (DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)])
• CX-5: (DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)])
• CX-9: (DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T])
• MX-5: (DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION [SKYACTIV-G 2.0])
• Mazda3: (DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))])
• Mazda3: (DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))])
• Mazda6: (DRIVE BELT AUTO TENSIONER REMOVALINSTALLATION [SKYACTIV-G 2.5T])
• Mazda6: (DRIVE BELT AUTO TENSIONER INSPECTION [SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)])
• Mazda6: (DRIVE BELT AUTO TENSIONER REMOVALINSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)])

3. Verify the repair.

PARTS INFORMATION

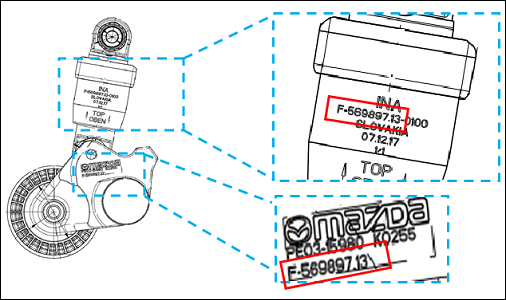

NOTE: The last two digits of the serial are different between the old and new parts.

Example:

• New part serial number is F569897.13.
• Old part serial number is F569897.10.

WARRANTY INFORMATION

Some vehicles may exhibit oil leakage from the drive belt auto tensioner and rattling noises from the engine compartment. This may be caused by insufficient sealing at the drive belt auto tensioner damper when the auto tensioner fully operates under both high ambient temperature and high load conditions. To eliminate this concern, the shape of the drive belt auto tensioner damper has been changed.


Customers having this concern should have their vehicle repaired using the following repair procedure.

Part Number	Description	Qty.	Note
PET2-15-980	Tensioner-Auto	1	New modified drive belt auto tensioner can be identified by  serial number F569897.13. Refer to the example below.

NOTE: The last two digits of the serial are different between the old and new parts.

Example:

• New part serial number is F569897.13.
• Old part serial number is F569897.10.
