CYLINDER HEAD ASSEMBLY (I)
CYLINDER HEAD ASSEMBLY (I)
SM2841694
id011000504300
Special Service Tool (SST)
|
49 B012 016
Attachment
|
 |
49 0636 100B
Valve spring lifter arm
|
 |
49 B012 0A2A
Pivot
|
 |
Replacement Part
|
Valve seal
Quantity: 16
Location of use: Valve guide
|
Oil and Chemical Type
|
Engine oil
Type: Recommended oil
|

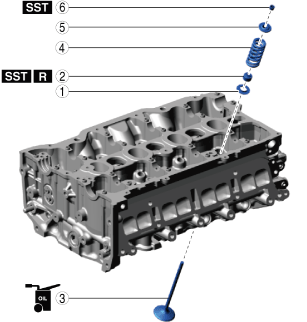

1.Assemble in the order indicated in the table.
btstze00000019
|
|
1
|
Lower valve spring seat
|
|
2
|
Valve seal
(See Valve Seal Assembly Note.)
|
|
3
|
Valve
|
|
4
|
Valve spring
(See Valve Spring Assembly Note.)
|
|
5
|
Upper valve spring seat
|
|
6
|
Valve keeper
(See Valve Keeper Assembly Note.)
|
Valve Seal Assembly Note

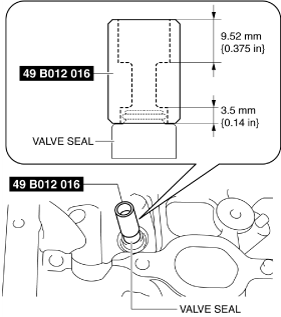

1.Press in the valve seal to the valve guide using the SST by hand.
bpe1ze00000057
|
-
Valve seal identification color
-
IN: GREENEX: GRAY
Valve Spring Assembly Note
-
Caution
-

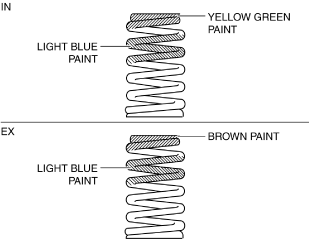

• The valve springs differ depending on the IN and EX sides.Therefore, verify the free length or identification paint beforehand and inspect the valve springs.
btstze00000020
1.Assemble the valve spring with the small diameter side of the valve spring facing upward.
Valve Keeper Assembly Note
1.Install the valve keeper using the SST.
bpe7ze00000014
|
