ENGINE MOUNTING/DISMOUNTING

ENGINE MOUNTING/DISMOUNTING

SM2841620


id011000507000



Mounting

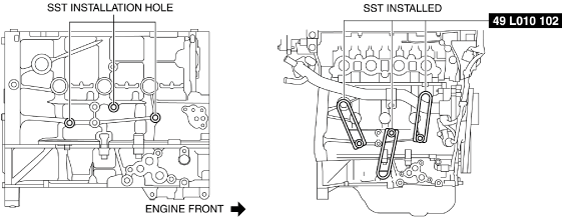

1.Install the SST (arms) to the three positions as shown in the figure and temporarily tighten the bolts (Part No. 9YA20-1003 or M10 × 1.5 length 90 mm {3.55 in}).

bpe1ze00000084

2.Install the SSTs (bolts and nuts) to the three positions of the SST (plate) as shown in the figure.

bp31je00000140

3.Install the SST (bolts, nuts and plate) set in Step 2 to the SST (arms) set in Step 1 using the SSTs (hook and nuts).

bpe2ue00000089

4.Adjust the bolts so that approx. 20 mm {0.79 in} of thread is exposed from the side of the plate.

5.Adjust the bolts and nuts so that the plate and arms are parallel.

6.Tighten the SSTs (bolts and nuts) to affix the SST firmly.

7.Install the engine to the SST (engine stand).

8.Remove the oil drain plug and drain the engine oil.

9.Replace the gasket with a new one and install the oil pan drain plug.

Tightening torque
30—41 N·m {3.1—4.1 kgf·m, 23—30 ft·lbf}



Dismounting

1.Dismount in the reverse order of mounting.
