LIGHTING SYSTEMS LOCATION INDEX [(E)]
LIGHTING SYSTEMS LOCATION INDEX [(E)]
SM2780933
id0918008001x2

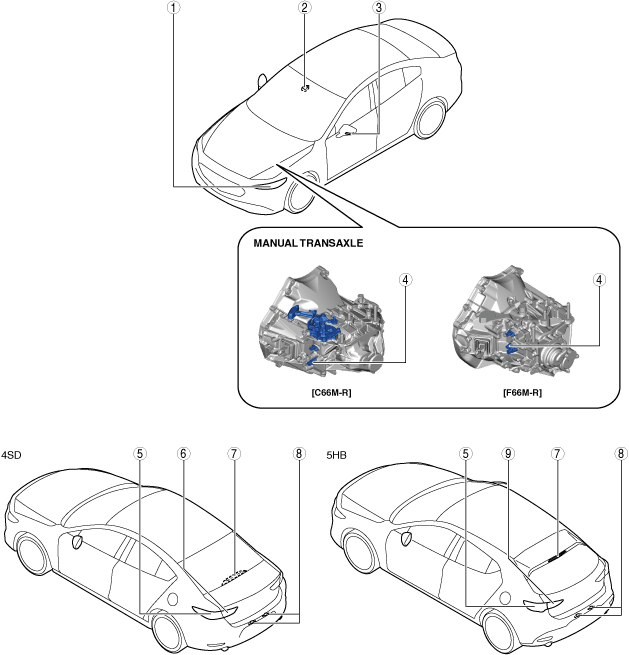

Exterior
am3zzw00028504
|
|
1
|
Front combination light
|
|
2
|
Auto light sensor (with auto light system)
(See AUTO LIGHT SENSOR INSPECTION.)
|
|
3
|
Side turn light
(See SIDE TURN LIGHT INSPECTION.)
|
|
4
|
Back-up light switch (MTX)
|
|
5
|
Rear combination light
|
|
6
|
Trunk lid light (4SD)
|
|
7
|
High-mount brake light
|
|
8
|
License plate light
|
|
9
|
Liftgate light (5HB)
|

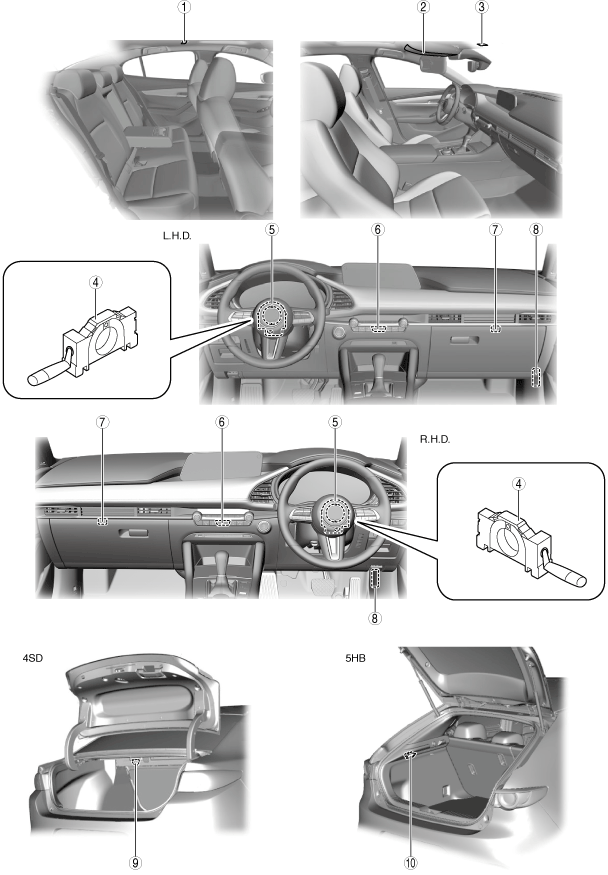

Interior
am3zzw00030984
|
|
1
|
Rear map light
|
|
2
|
Front map light
(See FRONT MAP LIGHT INSPECTION.)
|
|
3
|
Vanity mirror illumination (with vanity mirror illumination)
|
|
4
|
Light switch
|
|
5
|
Steering angle sensor (with adaptive front lighting system (AFS) or smart city brake support (SCBS))
|
|
6
|
Hazard warning switch
|
|
7
|
Glove compartment light (with glove compartment light)
|
|
8
|
Auto leveling control module (without adaptive LED headlights / adaptive front lighting system (AFS))
|
|
9
|
Trunk compartment light (4SD)
|
|
10
|
Cargo compartment light (5HB)
|
