CANISTER VENT (CV) SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))]
CANISTER VENT (CV) SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))]
SM2565785
id0116u0832100
Replacement Part
|
O-ring
Quantity: 2
Location of use: CV solenoid valve
|
U.S.A. And CANADA
1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
2.Remove the charcoal canister (sub) component. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))].)
3.Remove in the order indicated in the table.
4.Install in the reverse order of removal.

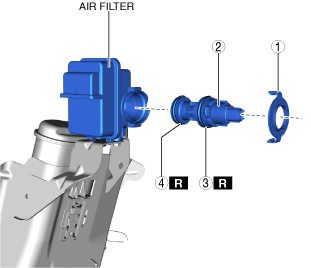

am3zzw00029286
|
|
1
|
Blind cap
|
|
2
|
CV solenoid valve
|
|
3
|
O-ring No.1
|
|
4
|
O-ring No.2
|
CV Solenoid Valve Removal Note
-
Caution
-
• Seal will be tight. Be careful not to damage the CV solenoid valve when removing the CV soleonoid valve.
1.Turn the CV solenoid valve counter-clockwise.
am3zzw00031814
|
2.Pull the CV solenoid valve straight out to remove.
CV Solenoid Valve Installation Note
-
Caution
-
• Be careful not to damage the CV solenoid valve when installing the CV soleonoid valve.
1.Insert the CV solenoid valve as shown in the figure.
am3zzw00031815
|
2.Press in the CV solenoid valve to be seated.
