AIR CLEANER ELEMENT REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))]
AIR CLEANER ELEMENT REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))]
SM2565699
id0113u0800200

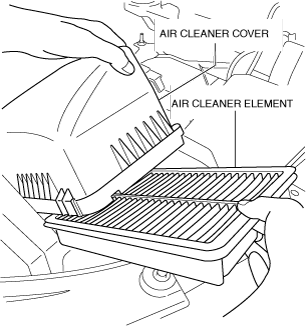

1.Remove the air cleaner element as shown in the figure.
ac5uuw00000360
|
2.Install in the reverse order of removal. (See Air Cleaner Cover Installation Note.)
Air Cleaner Cover Installation Note

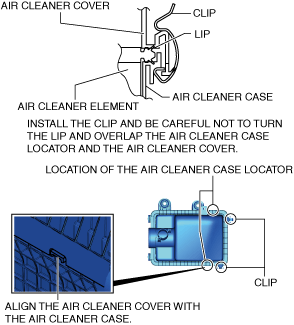

1.Install the air cleaner cover as shown in the figure.
ac5wzw00005692
|
2.Secure the air cleaner cover and the air cleaner case with the clip.
am3zzw00033013
|
