COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))]
COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))]
SM2565680
id0112u0801000
1.Remove the hose and coolant reserve tank cap as a single unit.
2.Remove in the order indicated in the table.
3.Install in the reverse order of removal.

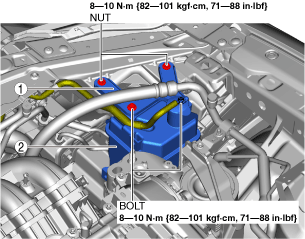

am3zzw00027954
|
|
1
|
Bracket
|
|
2
|
Coolant reserve tank
|
Coolant Reserve Tank Installation Note
1.Insert a rubber mount in the pin of the frame.
am3zzw00027955
|
