• The heater system warms the heater core using the engine coolant warmed by the engine operation.
Function
Heater core
-
• The heater system intakes a portion of the warmed engine coolant into the heater core and circulates it.• The heater core consists of a tube which passes engine coolant, and the heat radiation fin.
am3zzn00008082
Structure/Construction

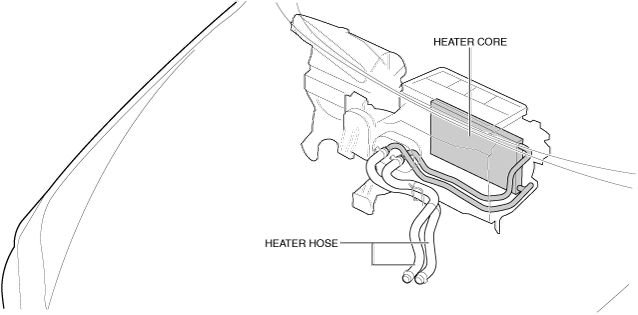

SKYACTIV-G 2.0, SKYACTIV-G 2.5
am3zzn00008083
|
Operation

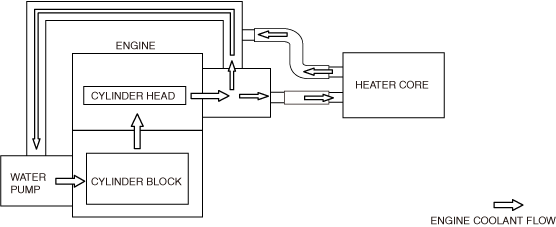

1. Engine coolant flows into the heater core by the operation of the water pump.
2. When the warmed engine coolant circulates in the heater core, the heater core warms up.
ac5uun00002299
|

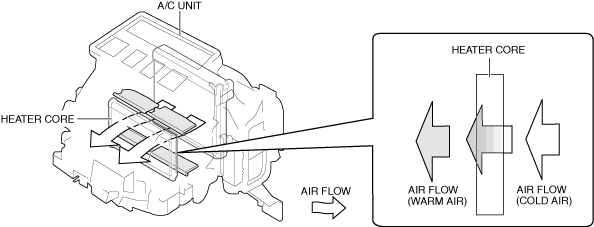

3. The air passing through the warmed heater core is warmed by heat exchange.
am3zzn00008084
|
