NEUTRAL SENSOR [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))]
NEUTRAL SENSOR [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))]
SM2565326
id0140u0009100
Purpose/Function
• Detects the neutral position of the shift lever.
Construction
• The neutral sensor is installed to the manual transaxle.
am3zzn00009652
|
• The neutral sensor has adopted a magnetic resistance (MR) element to the detection area.
Operation
• The neutral sensor signal is input to the PCM.
am3zzn00007857
|
• The voltage value input to the PCM fluctuates based on the angle of the neutral detecting part while in neutral.
am3zzn00009653
|

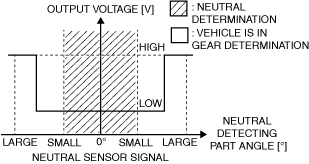

Neutral sensor characteristic
am3zzn00009348
|
