VALVE, VALVE SPRING, VALVE SEAL, VALVE GUIDE [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))]
VALVE, VALVE SPRING, VALVE SEAL, VALVE GUIDE [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))]
SM2565224
id0110u0001300
Purpose, Function
Valve
-
• The intake valve is pressed down by the cam, the intake air passage is opened, and air is introduced into the cylinder.• The exhaust valve is pressed down by the cam, the exhaust air passage is opened, and combustion gas is exhausted from the cylinder.
Valve spring
-
• The valve spring adheres the valve to the valve seat by pulling up the valve by spring force, and air tightness in the combustion chamber is maintained.
Valve seal
-
• The valve seal prevents engine oil from entering combustion chamber through the valve guide, and engine oil consumption is suppressed.
Valve guide
-
• The valve guide maintains the valve stem to open and close the valve smoothly.• The valve guide cools the valve by transmitting valve heat to the cylinder head.
Construction

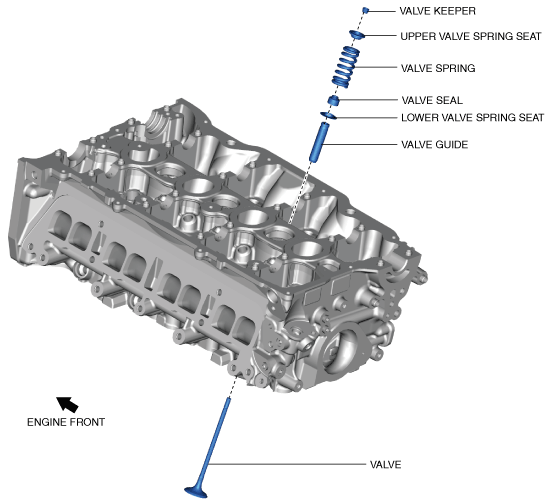

• The valve, valve spring, valve seal, and valve guide are assembled to the cylinder head.
ac5wzn00004487
|
• The sliding resistance has been reduced by setting the valve spring load to the required minimum.
• The intake valve and exhaust valve are subjected to a nitriding treatment to enhance wear resistance.
• Unequal pitch valve spring has been adopted. In addition, the upper diameter is smaller compared to the bottom diameter.
• The valve guide is made of sintered alloy with excellent wear resistance.
