CUP HOLDER REMOVAL/INSTALLATION
CUP HOLDER REMOVAL/INSTALLATION
SM2336567
id091700969100
1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
2.Remove the following parts:
- (1)Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R].)
- (2)Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
- (3)Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
- (4)Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

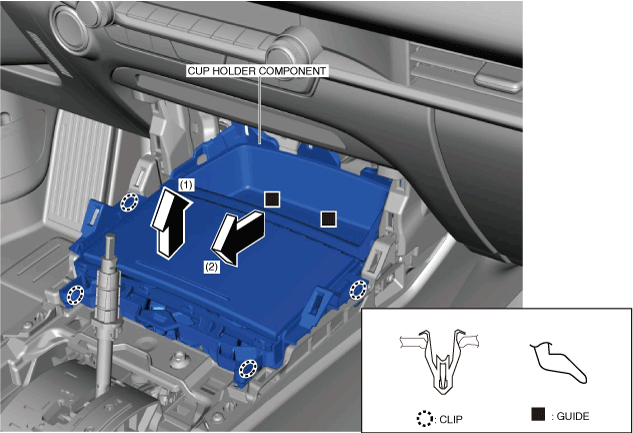

3.Move the cup holder in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the clips and guides.
ac5uuw00005331
|
4.Install in the reverse order of removal.
