B-PILLAR LOWER TRIM REMOVAL/INSTALLATION
B-PILLAR LOWER TRIM REMOVAL/INSTALLATION
SM2336539
id091700802000
1.Remove the following parts:
- (1)Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (2)Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (3)Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (4)B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

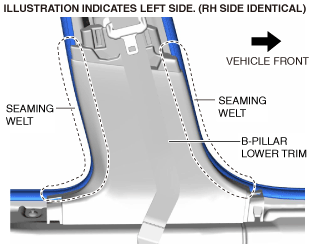

2.Partially peel back the seaming welt.
am3zzw00021828
|

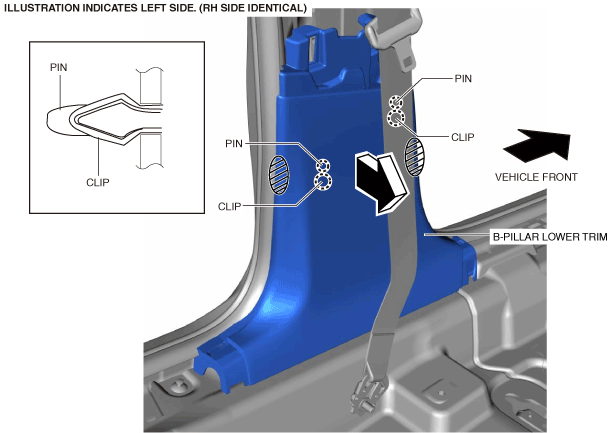

3.Grasp the shaded areas shown in the figure, and pull the B-pillar lower trim in the direction of the arrow while detaching the clips and pins.
am3zzw00021829
|
4.Install in the reverse order of removal.
