Floor Under Cover No.1

1.Lift up the vehicle.

2.Remove the tunnel cover. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))].)

3.Remove the gusset. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [(US)].)

4.Remove the bolts.

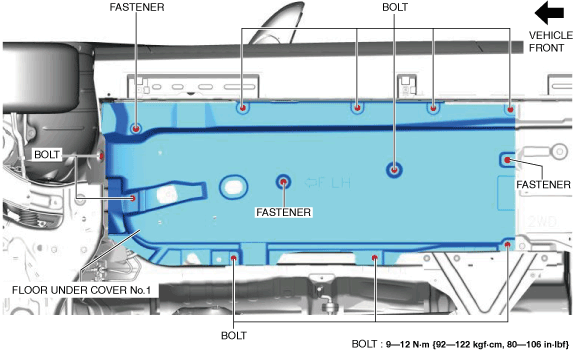

LH

am3zzw00029728

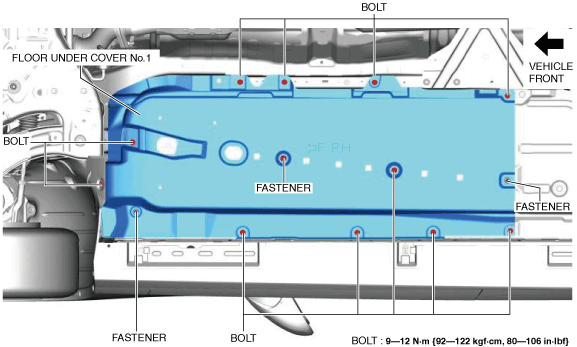

RH

am3zzw00029729

5.Remove the fasteners.

6.Remove the floor under cover No.1.

7.Install in the reverse order of removal.

Floor Under Cover No.2

2WD

1.Lift up the vehicle.

2.Remove the bolts.

LH

am3zzw00024182

RH

am3zzw00024183

3.Remove the fasteners.

4.Remove the cap nuts.

5.Remove the floor under cover No.2.

6.When removing the bracket, perform the following procedure (RH only) :

(1)Remove the nuts.

am3zzw00030083

(2)Remove the bracket.

7.Install in the reverse order of removal.

AWD

1.Lift up the vehicle.

2.Remove the bolts.

LH

am3zzw00033052

RH

am3zzw00033053

3.Remove the fasteners.

4.Remove the cap nuts.

5.Remove the floor under cover No.2.

6.Install in the reverse order of removal.
