REAR OUTER HANDLE REMOVAL/INSTALLATION

id091400510200

1.Fully close the rear door glass.

2.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

3.Remove the following parts:

(1)Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(2)Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(3)Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

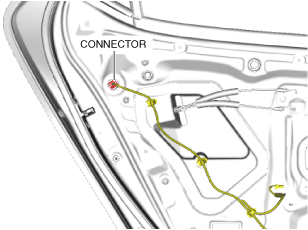

4.Disconnect the connector.

am3zzw00022084

Caution

• When removing the service hole cover, insert the remover tool so as not to damage the seal rubber.

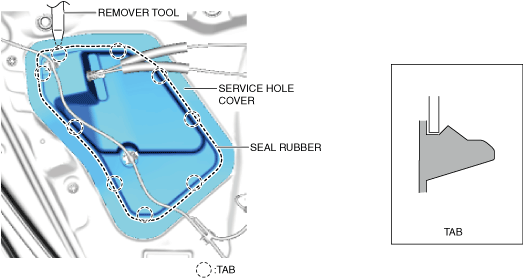

5.Detach the service hole cover tabs from the body using a remover tool.

am3zzw00031265

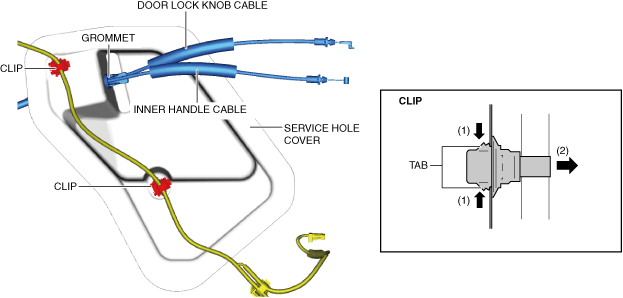

6.Remove the clips.

am3zzw00022086

7.Remove the grommet.

8.Pull the door lock knob cable and the inner handle cable from the service hole cover.

9.Remove the service hole cover. (See Service Hole Cover Installation Note.)

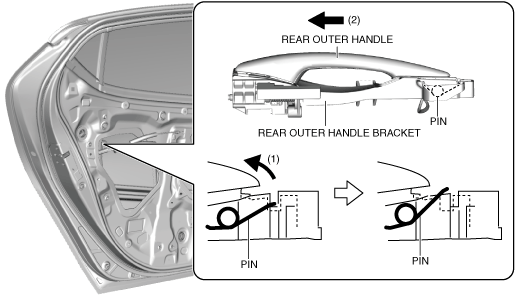

10.While pressing the rear outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the rear outer handle in the direction of arrow (2) and detach the rear outer handle bracket pin from the rear outer handle.

am3zzw00022090

11.Remove the rear outer handle in the direction of the arrow shown in the figure. (See Rear Outer Handle Installation Note.)

am3zzw00022091

12.Remove the service hole cover.

am3zzw00022087

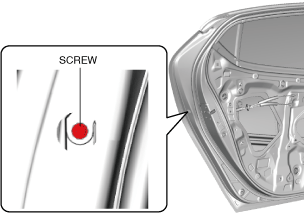

13.Loosen the screw.

am3zzw00022088

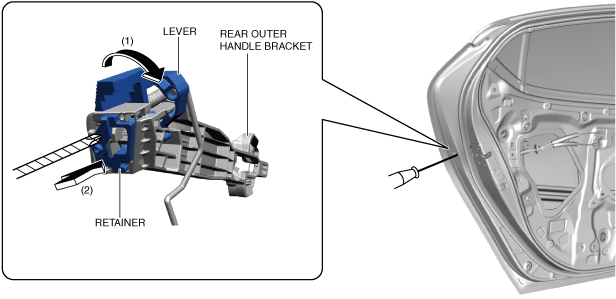

14.While moving the lever in the direction of arrow (1) shown in the figure, press the retainer in the direction of arrow (2) using a tape-wrapped screwdriver, and then secure the lever.

am3zzw00036830

15.Remove the cap. (See Rear Outer Handle Installation Note.)

am3zzw00036831

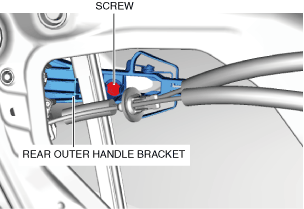

16.Loosen the screw securing the rear outer handle bracket.

am3zzw00022092

Note

• The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.

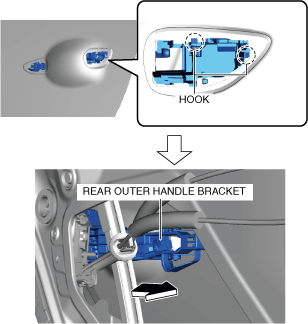

17.Pull the rear outer handle bracket in the direction of the arrow shown in the figure and detach the rear outer handle bracket hook from the body.

am3zzw00028597

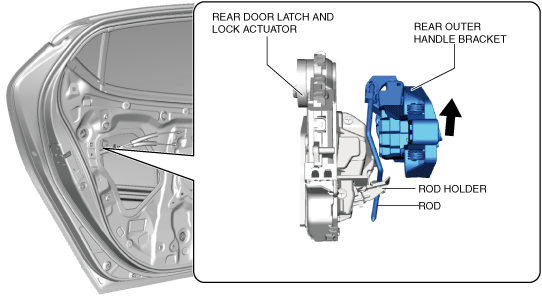

18.Lift the rear outer handle bracket in the direction of the arrow shown in the figure and pull out the rod from the rod holder. (See Rear Outer Handle Bracket Installation Note.)

am3zzw00022094

19.Remove the rear outer handle bracket.

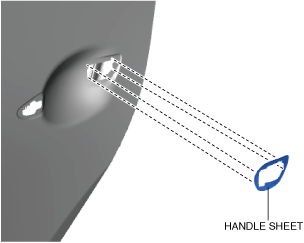

20.Remove the handle sheet from the body.

am3zzw00029696

21.Install in the reverse order of removal.

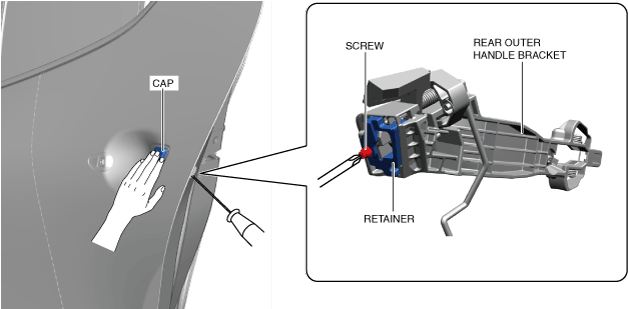

Cap Installation Note

1.Tighten the screw while holding the cap, and return the retainer to its original position.

am3zzw00036832

Rear Outer Handle Installation Note

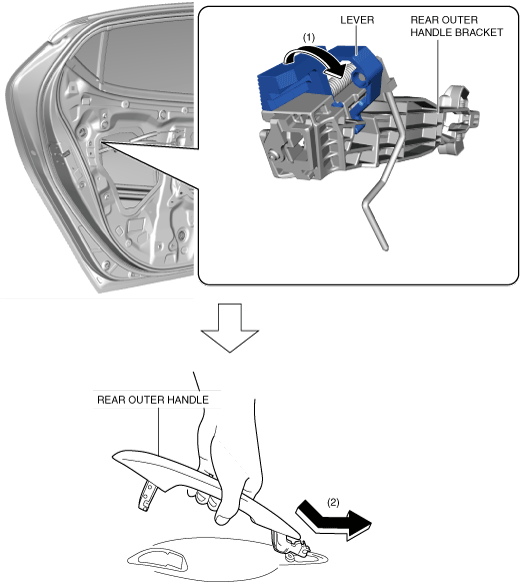

• While pressing the rear outer handle bracket towards the body, move the lever in the direction of arrow (1) shown in the figure, move the rear outer handle in the direction of arrow (2), and then install the rear outer handle.
