1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

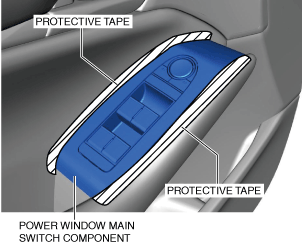

2.Affix the protective tape to the position shown in the figure to prevent scratches and damage.

am3zzw00028829

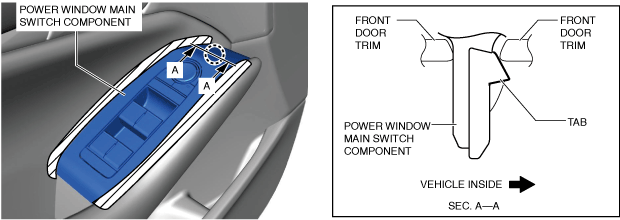

3.Using a remover tool, remove the tab shown in the figure.

am3zzw00028830

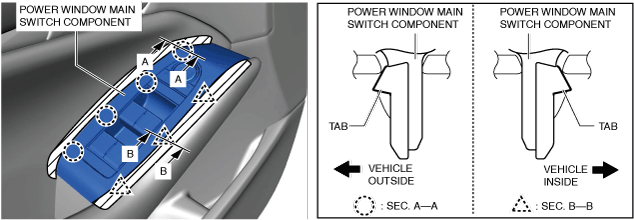

4.Using a remover tool, remove the tabs shown in the figure.

am3zzw00028831

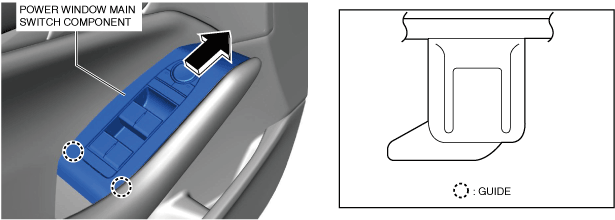

5.Move the power window main switch component in the direction of the arrow and detach the guides.

am3zzw00028832

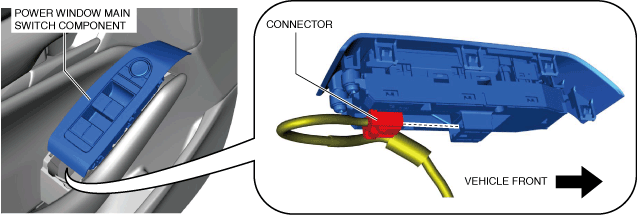

6.Disconnect the connector.

am3zzw00024492

7.Remove the power window main switch component from the front door trim.

8.Remove the screws.

am3zzw00024493

9.Remove the power window main switch from the power window main switch cover.

10.Install in the reverse order of removal.
