MAGNETIC CLUTCH INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5]
MAGNETIC CLUTCH INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5]
SM2335705
id071100006537
1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
2.Disconnect the magnetic clutch connector. (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

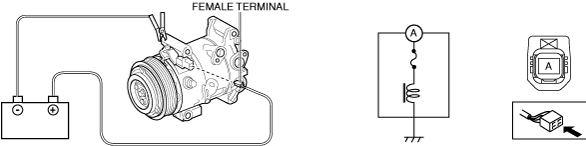

3.Connect battery to terminal A of magnetic clutch and ground to A/C compressor body.
am3zzw00027676
|
4.Verify that the magnetic clutch operates.
-
• If there is any malfunction, replace the magnetic clutch. (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
