MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0, SKYACTIV-G 2.5]
MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0, SKYACTIV-G 2.5]
SM2335703
id071100006337
Replacement Part
|
Bolt
Quantity: 1
Location of use: Magnetic clutch
|
Magnetic Clutch is Disassembled/Assembled with A/C Compressor Removed from Vehicle
1.Disassemble in the order indicated in the table.

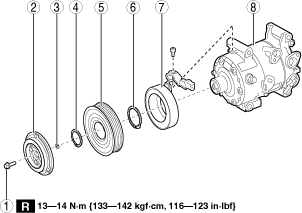

am3zzw00026493
|
|
1
|
Bolt
(See Bolt removal/installation.)
|
|
2
|
Pressure plate
|
|
3
|
Shim
|
|
4
|
Snap ring
|
|
5
|
A/C compressor pulley
|
|
6
|
Snap ring
|
|
7
|
Stator
|
|
8
|
A/C compressor body
|
2.Assemble in the reverse order of disassembly.
3.Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Bolt removal/installation
1.Connect the harness to the magnetic clutch connector.
am3zzw00029190
|
2.Connect the battery (+) cable to the harness.
3.Connect the battery (-) cable to the A/C compressor body.
-
Note
-
• Energize the magnet clutch and fix the A / C compressor pulley and the pressure plate.
4.Wrap the drive belt, which is no longer of use, tightly around the A/C compressor pulley.
am3zzw00029191
|
5.Hold the drive belt in place with pliers.
6.Remove/installation the bolt.
Magnetic Clutch is Disassembled/Assembled with A/C Compressor Equipped to Vehicle
1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
2.Remove the following parts:
- (1)Wheel and tire (RF) (See WHEEL AND TIRE REMOVAL/INSTALLATION.)
- (2)Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
- (3)Front under cover No.1 (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)
- (4)Front deflector (RH) (See DEFLECTOR REMOVAL/INSTALLATION.)
- (5)Front splash shield (RH) (See SPLASH SHIELD REMOVAL/INSTALLATION.)
3.Remove the fasteners.

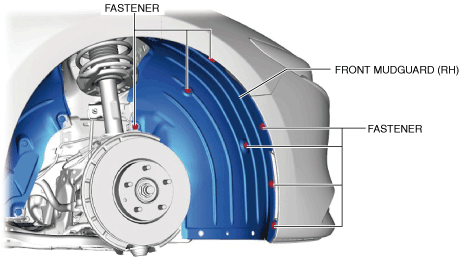

am3zzw00021310
|
4.Bend back the front side of the front mudguard (RH) in the direction of the arrow shown in the figure.
am3zzw00021311
|
5.Disconnect the magnetic clutch connector. (See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
6.Disassemble in the order indicated in the table.

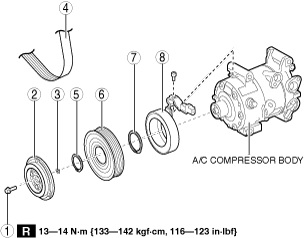

am3zzw00026494
|
|
1
|
Bolt
(See Bolt removal/installation.)
|
|
2
|
Pressure plate
|
|
3
|
Shim
|
|
4
|
Drive Belt
|
|
5
|
Snap ring
|
|
6
|
A/C compressor pulley
|
|
7
|
Snap ring
|
|
8
|
Stator
|
7.Assemble in the reverse order of disassembly.
8.Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Bolt removal/installation
1.Connect the harness to the magnetic clutch connector.
am3zzw00032041
|
2.Connect the battery (+) cable to the harness.
3.Connect the battery (-) cable to the A/C compressor body.
-
Note
-
• Energize the magnet clutch and fix the A / C compressor pulley and the pressure plate.
4.Secure the crankshaft pulley.

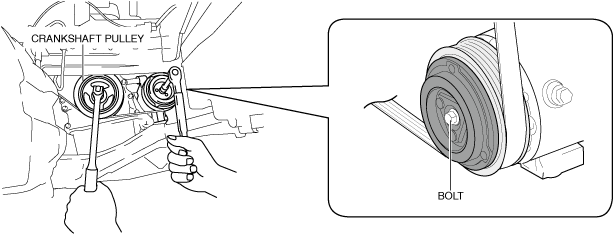

am3zzw00034811
|
5.Remove/installation the bolt.
Stator removal/installation note
1.Remove the bolts A, B, and C.
am3zzw00029192
|
2.Loose bolt D approx. 5 mm {0.2 in}.
3.Tilt the A/C compressor centered around bolt D.
am3zzw00021315
|
4.Remove the screw.
am3zzw00021316
|
5.Remove the stator.
