Front Splash Shield

1.Remove the fasteners shown in the figure and slightly bend back the front mudguard.

am3zzw00023946

2.Remove the bolts and fastener.

LH

am3zzw00023947

RH

am3zzw00023948

3.Partially peel back the front under cover No.2.

4.Remove the screw.

am3zzw00023949

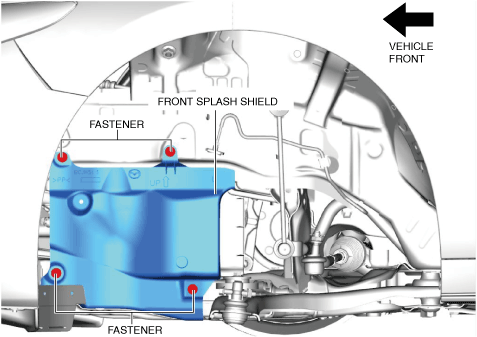

5.Remove the fasteners.

am3zzw00023950

6.Remove the front splash shield.

7.Install in the reverse order of removal.

Rear Splash Shield

4SD

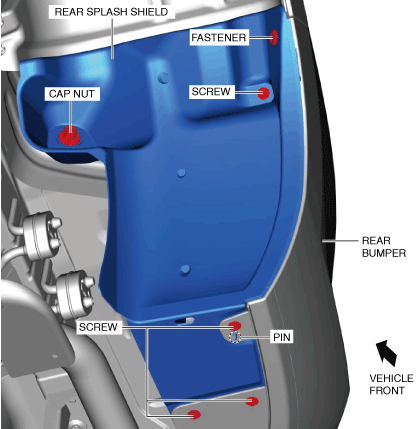

1.Remove the screws, fastener and cap nut.

am3zzw00023951

2.Remove the rear splash shield while detaching the pin.

3.Install in the reverse order of removal.

5HB

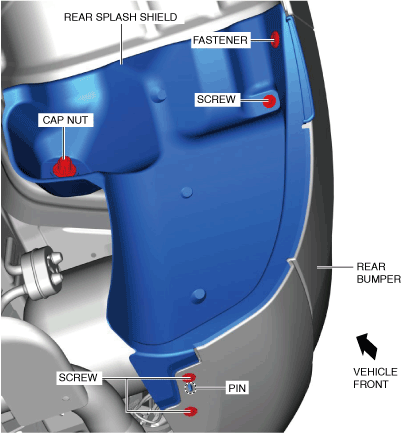

1.Remove the screws, fasteners and cap nut shown the figure.

am3zzw00023952

2.Remove the rear splash shield while detaching the pin.

3.Install in the reverse order of removal.
