POWER WINDOW MOTOR
POWER WINDOW MOTOR
SM2334193
id091200012400
Purpose
• The power window motor transmits rotation force to the power window regulator to open/close the door glass.
Function
The power window motor rotates clockwise/counterclockwise when it receives an open/close signal from the power window main switch or the power window subswitch.
Construction
• The power window motor consists of the following parts:
-
― Motor― Connector― Gear
am3zzn00006946
|
Operation
Open operation
-
• When the power window motor receives an open signal from the power window main switch or power window subswitch, the motor rotates clockwise (RH)/counterclockwise (LH).
Close operation
-
• When the power window motor receives a close signal from the power window main switch or power window subswitch, the motor rotates clockwise (LH)/counterclockwise (RH).

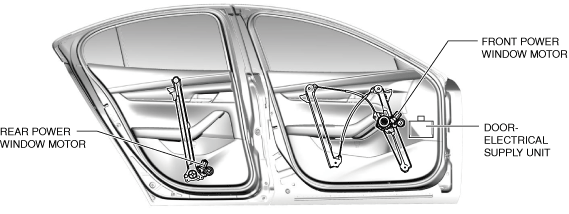

Door-electrical supply unit operation
-
• The door-electrical supply unit reads the ripple waveform of the power window motor current and calculates the position of the front/rear door glass.
am3zzn00007821
|
