CABIN SIDE FRAME DIMENSIONS [DIMENSIONS]
CABIN SIDE FRAME DIMENSIONS [DIMENSIONS]
SM2333691
id098010990400
4SD

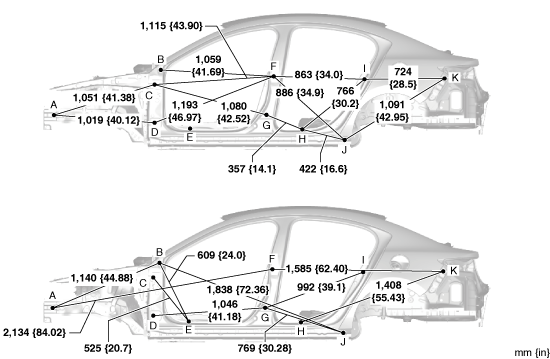

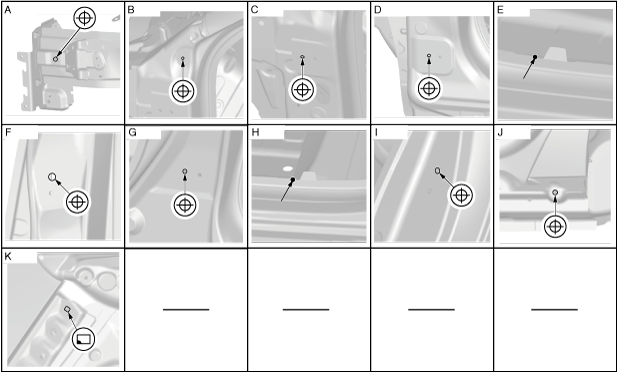

am3zzb00000618
|
am3zzb00000619
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {IN}) |
|---|---|---|
|
A
|
Front side frame (outer) datum hole
|
φ12 {0.47}
|
|
B
|
Front fender installation hole
|
φ10 {0.39}
|
|
C
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
D
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
E
|
Cabin side frame (outer) notch
|
—
|
|
F
|
Rear door hinge installation hole
|
φ11 {0.43}
|
|
G
|
Rear door hinge installation hole
|
φ8 {0.31}
|
|
H
|
Cabin side frame (outer) notch
|
—
|
|
I
|
Rear door striker installation nut
|
φ10 {0.39}
|
|
J
|
Side step molding installation hole
|
φ10 {0.39}
|
|
K
|
Rear bumper slider installation square hole
|
9 X 9
{0.35 X 0.35}
|
5HB

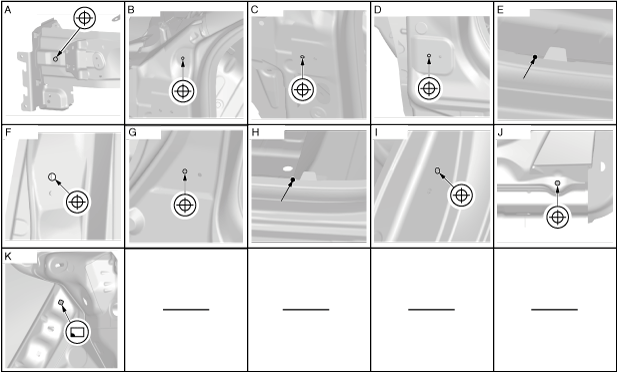

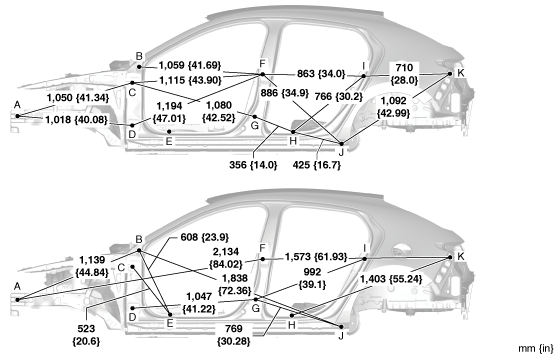

am3zzb00000628
|
am3zzb00000629
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {IN}) |
|---|---|---|
|
A
|
Front side frame (outer) datum hole
|
φ12 {0.47}
|
|
B
|
Front fender installation hole
|
φ10 {0.39}
|
|
C
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
D
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
E
|
Cabin side frame (outer) notch
|
—
|
|
F
|
Rear door hinge installation hole
|
φ11 {0.43}
|
|
G
|
Rear door hinge installation hole
|
φ8 {0.31}
|
|
H
|
Cabin side frame (outer) notch
|
—
|
|
I
|
Rear door striker installation nut
|
φ10 {0.39}
|
|
J
|
Side step molding installation hole
|
φ10 {0.39}
|
|
K
|
Rear bumper slider installation square hole
|
9 X 9
{0.35 X 0.35}
|
