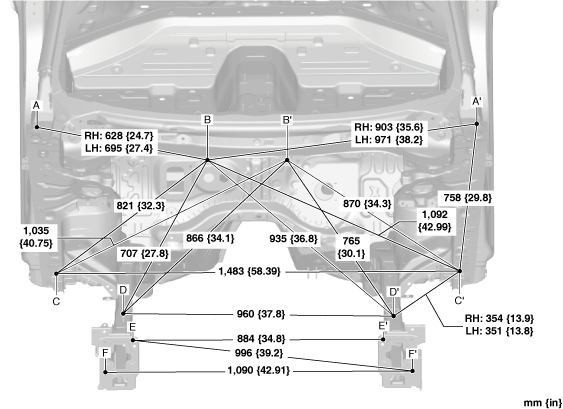

FRONT BODY DIMENSIONS (1) [DIMENSIONS]
FRONT BODY DIMENSIONS (1) [DIMENSIONS]
SM2333689
id098010990100
am3zzb00000614
|
am3zzb00000615
|
|

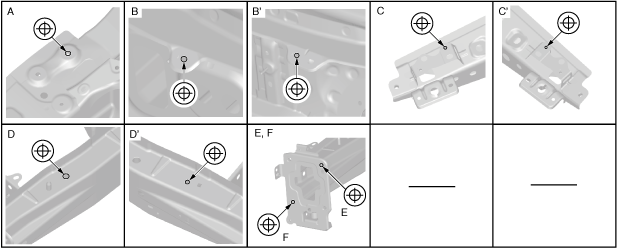

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {IN}) |
|---|---|---|
|
A
|
Hood hinge installation hole
|
φ10 {0.39}
|
|
B
|
Crossmember installation hole
|
φ12 {0.47}
|
|
C
|
Front fender panel installation hole
|
φ7 {0.28}
|
|
D
|
RH: Engine mount installation hole
LH: Air cleaner bracket installation hole
|
RH:φ16 {0.63}
LH:φ8 {0.31}
|
|
E
|
Front bumper reinforcement installation nut
|
M10
|
|
F
|
Front bumper reinforcement installation nut
|
M10
|
