Removal Procedure

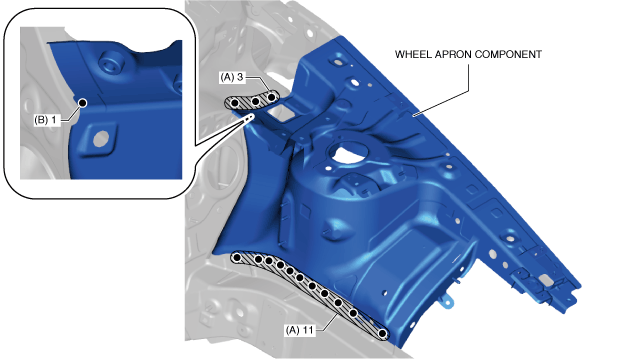

1.Drill the spot welds in the 14 locations in area A shown in the figure from the engine compartment.

2.Using a belt sander, grind the spot weld in the 1 location in area B shown in the figure from the engine compartment.

am3zzb00000337

3.Using a belt sander, grind the arc spot welds in the 4 locations in area C shown in the figure from the front wheel housing.

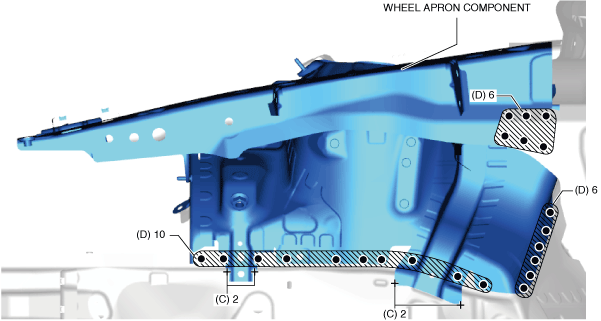

4.Drill the spot welds in the 22 locations in area D shown in the figure from the front wheel housing.

am3zzb00000338

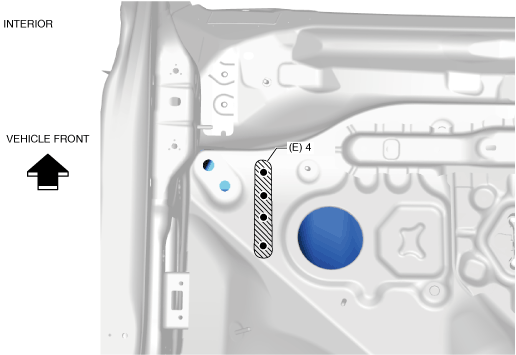

5.Drill the spot welds in the 4 locations in area E shown in the figure from the interior.

am3zzb00000339

6.Remove the wheel apron component.
